Materials Used in Daily Life

Unit 10 · CDC textbook pages 209–230

नेपालीमा पढ्नुहोस्

In this unit 5 sections
  1. Materials around us
  2. 10.1 Acid, base and salt
  3. Exercise (acid, base and salt)
  4. 10.2 Metals and non-metals
  5. Exercise

Squeeze a lemon onto your tongue: sour. Get soap in your mouth while bathing: bitter and slippery. Lick a grain of salt: salty. Your kitchen is a chemistry laboratory, full of acids, bases and salts, and your house is full of metals and non-metals, from the copper in its wires to the iodine in its salt.

In this unit you will learn to tell acids, bases and salts apart without tasting them, make your own color-changing indicator from a red flower, and find out why copper makes wires, aluminium makes airplanes, gold makes jewelry and sulphur makes matches.

Materials around us

We use many substances every day, and they have very different properties. Foods taste sour, sweet, bitter or salty. We use sugar to make tea, salt in curry, chuk amilo in pickle, soap to wash clothes and baking powder to bake bread. Scientists sort substances into groups by their properties, and that makes them easier to understand and use.

10.1 Acid, base and salt

As a rough guide, substances with a sour taste are acids, substances with a bitter taste and a slippery feel are often bases, and salts have many different tastes: common salt is salty. But taste is not a safe or sure test, as you will see.

Indicator

Many substances can’t be identified by taste: some are poisonous, and some burn the mouth. So chemists use an indicator.

An indicator is a substance that shows, by changing its color, whether another substance is an acid, a base or a salt (neutral). Litmus paper, methyl orange and phenolphthalein are common indicators in the laboratory.

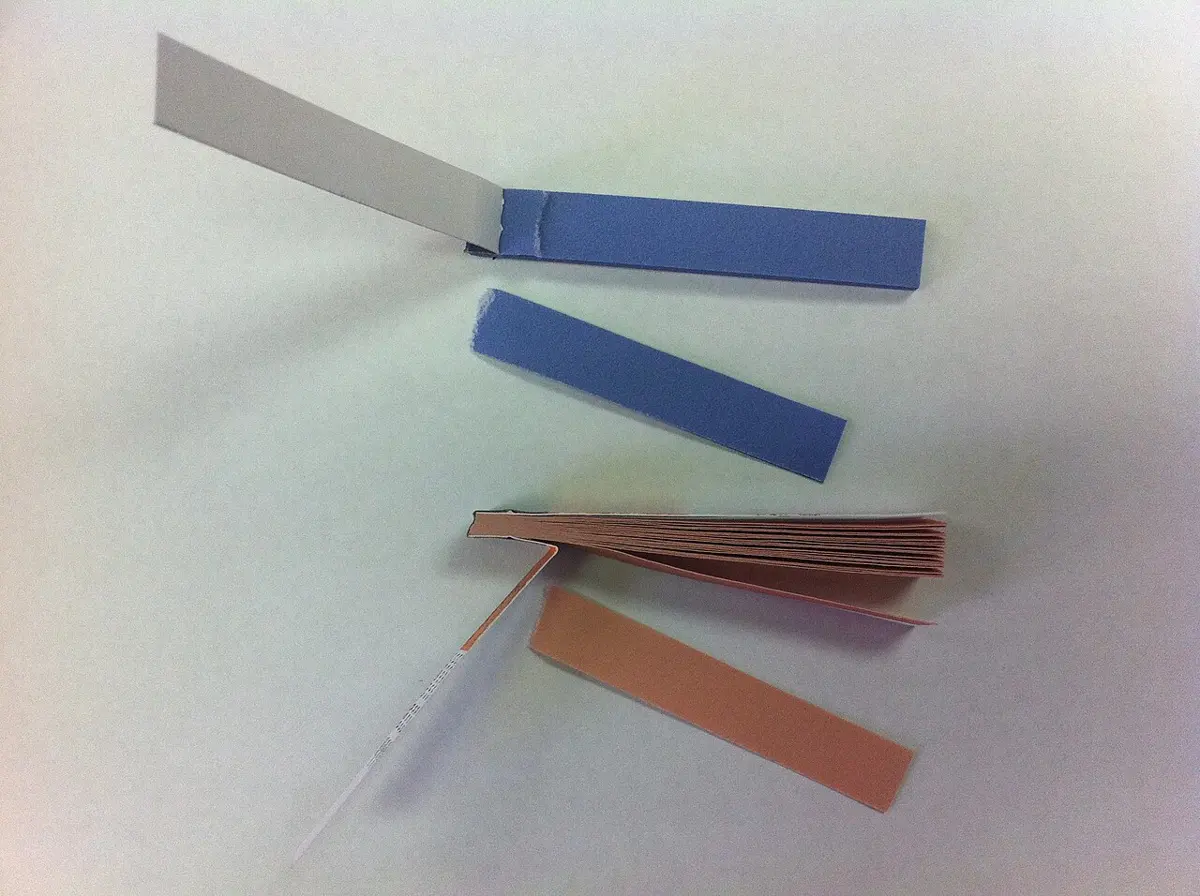

Strips of blue and red litmus paper
Figure 10.1 Blue and red litmus paper. Litmus is a dye made from lichens; the strips are paper soaked in it and dried. Photo: Meganbeckett27, CC BY-SA 3.0
Indicator In an acid In a base In a neutral salt solution
red litmus stays red turns blue no change
blue litmus turns red stays blue no change
methyl orange turns red turns yellow no change
phenolphthalein stays colorless turns pink no change (colorless)

An easy way to remember litmus: an acid turns litmus red, like a ripe tomato; a base turns it blue (b for both).

Making indicators from local materials

Many colored plant parts change color in acids and bases, so they are natural indicators: red rose and other red flowers, red cabbage leaves, red onion skins, beetroot and turmeric powder.

Indicators from the kitchen

Choose an indicator and see the color it turns in two acids, two neutral liquids and two bases.

lemonjuicevinegarwatersaltwatersoapwaterashwateracidsneutralbases
Indicator:

Red cabbage juice is purple in neutral liquids, turns pink-red in acids and blue-green to green in bases. It tells all three apart, and the color even hints at how strong the acid or base is.

Turmeric stays yellow in acids and in neutral liquids, and turns red-brown in bases. It shows bases only, which is why a turmeric stain turns red when washed with soap.

Juice of a red flower (hibiscus or rose) turns bright pink-red in acids and green in bases. Paper soaked in it and dried works like litmus paper.

Test with litmus

Pick a liquid and dip both strips. Then decide: acid, base or neutral?

red litmusblue litmuslemon juice
It is:

Press Dip the strips to dip a red and a blue litmus strip into the liquid.

Look at the wet ends of the strips. Is the liquid an acid, a base, or neutral?

Right: blue litmus turned red and red stayed red. Only an acid does that.

Right: red litmus turned blue and blue stayed blue. Only a base does that.

Right: neither strip changed color, so the liquid is neutral.

Not quite. Look again: the blue strip turned red. That means an acid.

Not quite. Look again: the red strip turned blue. That means a base.

Not quite. Neither strip changed, so it is neither an acid nor a base: neutral.

LiquidRed litmusBlue litmusYou said
lemon juice–––
vinegar–––
soap water–––
limewater–––
salt water–––
sugar water–––

Now sort the substances you use every day into acids, bases and salts in the same way.

Acid

Pickles, lemons, bhogate (pomelo) and titri (tamarind) all taste sour. Things that taste sour contain acids. Fruits such as apples, oranges and lemons, and many kinds of pickle, are acidic, and that is why they are sour.

Acids are of two kinds, by where they come from:

  • Organic acids come from plants and animals. They are weak and many are safe to eat: the acids in fruit, curd and vinegar.
  • Inorganic acids (also called mineral acids) are made from minerals. Hydrochloric acid, sulphuric acid and nitric acid are inorganic acids. They are strong and dangerous, and are used in laboratories and factories.
S.N. Acid Found in
1. citric acid orange, lemon, tomato
2. ascorbic acid (vitamin C) amala and other sour fruits
3. tartaric acid titri (tamarind), grapes
4. malic acid apple
5. lactic acid sour milk, curd
6. acetic acid vinegar, sour pickle
7. carbonic acid soda water, cold drinks
8. oxalic acid chari amilo (wood sorrel), tomato, spinach
9. formic acid ant stings, nettle (sisnu) hairs

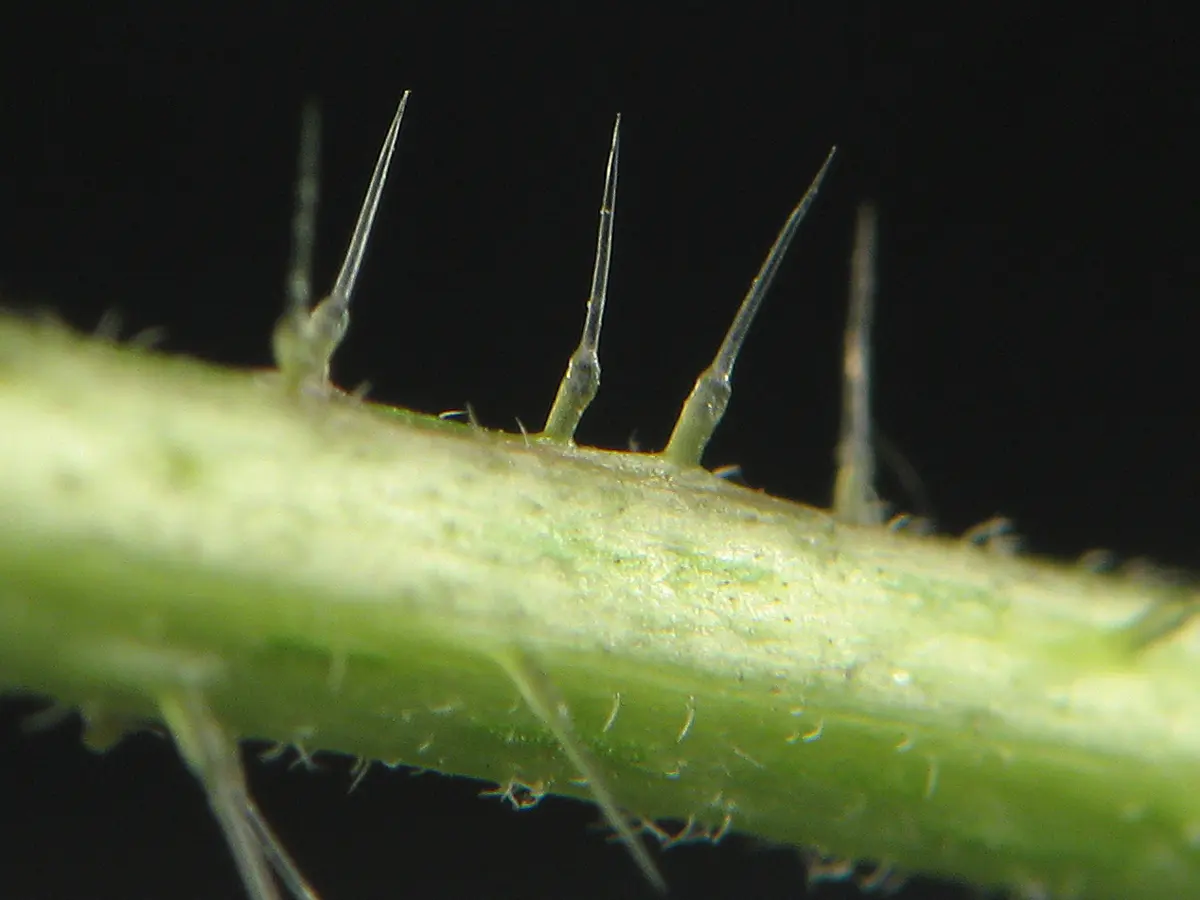

A green stem covered with long, glassy, needle-like hairs
Figure 10.3 The stinging hairs of a nettle, sisnu. Each hair is a tiny glassy needle; its tip breaks off in your skin and injects a mix of irritating chemicals, formic acid among them. Photo: Jerome Prohaska, CC BY-SA 3.0

Physical properties of acids

  • a.Acids taste sour.
  • b.They turn blue litmus red.
  • c.Strong acids are corrosive: they burn skin, eat into cloth and damage metals.
  • d.They turn methyl orange red.
  • e.Phenolphthalein stays colorless in an acid.

Base

Substances with a bitter taste and a slippery, soapy feel are often bases. A base that dissolves in water is called an alkali. Sodium hydroxide (caustic soda, used to make soap), potassium hydroxide and calcium hydroxide (slaked lime, chuna) are bases. A mixture of aluminium hydroxide and magnesium hydroxide is used as an antacid: it cancels the extra acid in the stomach when someone has hyperacidity (heartburn).

Physical properties of bases

  • a.Bases turn red litmus blue.
  • b.Most bases taste bitter.
  • c.Bases feel soapy or slippery.
  • d.Bases turn methyl orange yellow.
  • e.Bases turn phenolphthalein pink.

Strong and weak

Acids and bases are strong or weak.

  • Strong acids (hydrochloric, sulphuric and nitric acid) and strong bases (sodium hydroxide, potassium hydroxide) act very powerfully: they burn skin and eat into things. They are handled only in laboratories and factories, with great care.
  • Weak acids (citric, acetic, lactic acid) and weak bases (ammonium hydroxide, magnesium hydroxide, soap in water) act gently. We eat weak acids every day, and use weak bases to clean and as medicine.

Salt

When an acid and a base are mixed in the right amounts, they cancel each other out and form a salt and water:

acid + base → salt + water

For example, hydrochloric acid + sodium hydroxide → sodium chloride (common salt) + water. Sodium chloride (common salt), sodium carbonate (washing soda), copper sulphate and alum are salts.

Common salt is neutral, but not every salt is. Salts are of three types:

  • neutral salts, such as common salt (sodium chloride): no change in any indicator;
  • acidic salts, such as alum and ammonium chloride: their solutions are a little acidic;
  • basic salts, such as washing soda (sodium carbonate) and baking soda (sodium hydrogen carbonate): their solutions are a little basic, and turn red litmus blue.

Four indicators at once

Pick a liquid and test it with all four indicators. Which indicator tells you the most?

blue litmusred litmusmethyl orangephenolphthaleinlemon juice
It is:

Press “Add the indicators” to dip the litmus strips and drop methyl orange and phenolphthalein into the liquid.

Liquid (you said)Blue litmusRed litmusMethyl orangePhenol­phthalein
lemon juice––––
vinegar––––
soap water––––
ash water––––
lime water––––
washing-soda water––––
salt water––––
sugar water––––

Physical properties of salts

  • a.Salts have different tastes: common salt is salty, and some salts are bitter. (Never taste a laboratory salt.)
  • b.Most salts dissolve in water (but not all: chalk is a salt that doesn’t).
  • c.Salts may be white, colorless or colored: copper sulphate is bright blue.
  • d.Salts have high melting and boiling points: common salt melts only at 801 °C.
  • e.The solution of a neutral salt doesn’t change the color of any indicator.

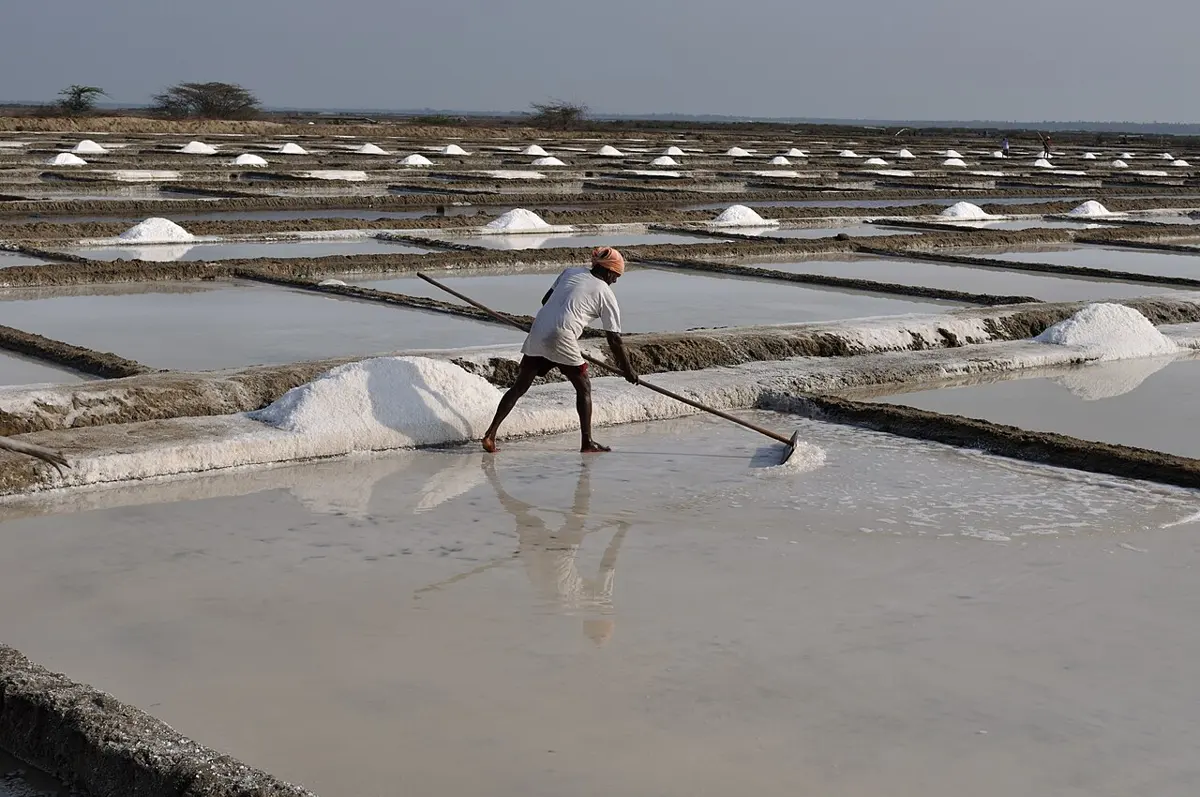

A worker raking white salt in a shallow, flat pool at a salt works
Figure 10.4 Salt pans at Marakkanam in India. Sea water is let into shallow pools, the sun dries it, and common salt is left behind to be raked up. Photo: Dey.sandip, CC BY-SA 4.0

Acid, base or salt?

Sort these things from home. Use what you know of their taste, feel and indicator colors.

Lemon juice

Soap

Common salt (nun)

Vinegar

Curd (dahi)

Wood ash in water

Chuna (slaked lime)

Titri (tamarind)

An antacid tablet

Alum (phitkiri)

All sorted!

Acid
  • lemon juice
  • vinegar
  • curd
  • tamarind
Base
  • soap
  • ash water
  • chuna
  • antacid
Salt
  • common salt
  • alum

Is it an acid, a base or a salt? Tap a group.

Right. Lemon juice is sour and turns blue litmus red: it holds citric acid.

Not quite. How does lemon taste?

Right. Soap feels slippery, tastes bitter and turns red litmus blue: a base.

Not quite. How does soap feel between wet fingers?

Right. Common salt is sodium chloride, the best-known salt. Its solution doesn’t change litmus.

Not quite. Its chemical name is sodium chloride.

Right. Vinegar is sour: it holds acetic acid.

Not quite. Vinegar makes pickles sour. What makes things sour?

Right. Curd is sour because of lactic acid.

Not quite. Why is curd a little sour?

Right. Ash water feels slippery and turns red litmus blue: a base, once used to wash clothes and pots.

Not quite. Ash water feels slippery, like soap.

Right. Chuna is calcium hydroxide, a base. It is used to whitewash walls and to make acidic soil less acidic.

Not quite. Its chemical name is calcium hydroxide. Hydroxides are…?

Right. Tamarind is sour because of tartaric acid.

Not quite. How does titri taste?

Right. An antacid holds bases (aluminium and magnesium hydroxides) that cancel extra stomach acid.

Not quite. An antacid works against acid. What cancels an acid?

Right. Alum is a salt, potassium aluminium sulphate (an acidic salt: its solution is slightly acidic). It is used to clear muddy water and to stop small cuts bleeding.

Not quite. Its chemical name ends in “sulphate”, like many salts.

Right. Alum is a salt, potassium aluminium sulphate (an acidic salt: its solution is slightly acidic). It is used to clear muddy water and to stop small cuts bleeding. Every one is sorted.

A liquid turns red litmus blue and phenolphthalein pink. What is it?

Pick an answer to see why.

Which pair would cancel each other out to make a salt?

Pick an answer to see why.

Exercise (acid, base and salt)

1. Fill in the blanks with suitable words from the box

salt · citric acid · acid · base · formic acid · methyl orange

a.

The itching and swelling of the skin after an ant or bee sting is due to __________.

Answer

formic acid (in an ant’s sting; a bee’s venom is mostly proteins, but this is the usual answer)

b.

Ash is an example of a __________.

Answer

base

c.

Sodium chloride is a __________.

Answer

salt

d.

We can find __________ in tomato.

Answer

citric acid

e.

Substances with a sour taste generally contain an __________.

Answer

acid

2. Choose the correct option

a. To which group does edible soda (baking soda) belong?

Pick an answer to see why.

b. Which change does apple juice show?

Pick an answer to see why.

c. Which of these has the properties of a base?

Pick an answer to see why.

d. Which indicator is made from lichens?

Pick an answer to see why.

e. What is the feature of a base?

Pick an answer to see why.

f. Which of these shows an indicator correctly?

Pick an answer to see why.

g.

Match each acid with its source.

Acid Source
carbonic acid lemon
tartaric acid curd
citric acid amala
malic acid vinegar
lactic acid soda water
acetic acid apple
ascorbic acid titri
Answer
Acid Source
carbonic acid soda water
tartaric acid titri (tamarind)
citric acid lemon
malic acid apple
lactic acid curd
acetic acid vinegar
ascorbic acid amala

3. Give reasons

a.

Nettles make the skin burn.

Answer

The hairs of a nettle (sisnu) are tiny hollow needles. When they touch the skin, their tips break off and inject formic acid and other irritating chemicals, which make the skin burn and itch.

b.

Litmus paper doesn’t change color in a solution of common salt.

Answer

Common salt (sodium chloride) is a neutral salt: its solution is neither acidic nor basic. Litmus changes color only in an acid or a base.

c.

A lemon tastes sour.

Answer

A lemon contains citric acid, and acids taste sour.

d.

Acids should be handled with care.

Answer

Strong acids are corrosive: they burn the skin and eyes, make holes in clothes and eat into metals. Even a drop can cause a serious burn, so they are handled carefully, with the bottle closed and away from the face.

e.

Ash water is slippery.

Answer

Ash contains bases (mostly potassium carbonate). Bases feel slippery and soapy: they react with the oils on your skin and turn them into a kind of soap.

4. Differentiate between

a.

Acid and base

Answer
Acid Base
Tastes sour. Tastes bitter.
Turns blue litmus red. Turns red litmus blue.
Turns methyl orange red. Turns methyl orange yellow.
Phenolphthalein stays colorless. Turns phenolphthalein pink.
Example: citric acid, hydrochloric acid. Example: sodium hydroxide, soap.
b.

Strong base and weak base

Answer
Strong base Weak base
Acts very powerfully in water. Acts only gently in water.
Corrosive: burns the skin. Mild: safe to use with care, even as a medicine.
Example: sodium hydroxide (caustic soda), potassium hydroxide. Example: ammonium hydroxide, magnesium hydroxide.
c.

Lemon water and soap water

Answer
Lemon water Soap water
Acidic: contains citric acid. Basic: soap is a base.
Tastes sour. Tastes bitter and feels slippery.
Turns blue litmus red. Turns red litmus blue.
Phenolphthalein stays colorless. Turns phenolphthalein pink.

5. Answer the following questions

a.

What is an acid? Give two examples of acids found in your locality.

Answer

An acid is a substance that tastes sour and turns blue litmus red (and methyl orange red). Examples from home: citric acid in lemons and oranges, lactic acid in curd (also acetic acid in vinegar, tartaric acid in tamarind).

b.

Name three acids used in the laboratory.

Answer

Hydrochloric acid, sulphuric acid and nitric acid.

c.

What is a base? List some bases used in daily life.

Answer

A base is a substance that tastes bitter, feels soapy and turns red litmus blue (and phenolphthalein pink). A base that dissolves in water is an alkali. Bases in daily life: soap, ash water, slaked lime (chuna), antacid tablets (aluminium and magnesium hydroxides), toothpaste, and washing soda and baking soda solutions (basic salts).

d.

What is an organic acid? Give some examples.

Answer

An organic acid is an acid obtained from plants or animals. Organic acids are weak, and many are eaten in food. Examples: citric acid (lemon), lactic acid (curd), acetic acid (vinegar), tartaric acid (tamarind), malic acid (apple), ascorbic acid (amala).

e.

Complete the table to show the color of each indicator in an acid, a base and a salt.

Indicator Acid Base Salt
methyl orange red ________ no change
litmus paper ________ blue ________
phenolphthalein colorless ________ no change
Answer
Indicator Acid Base Salt (neutral)
methyl orange red yellow no change
litmus paper red (blue litmus turns red) blue (red litmus turns blue) no change
phenolphthalein colorless pink no change
f.

Three test tubes, A, B and C, hold an acid, a base and a salt solution, one in each. How can you find which is which with the help of methyl orange?

Answer

Add two drops of methyl orange to each tube.

  • The tube in which it turns red holds the acid.
  • In the other two it stays yellow, because methyl orange is yellow in both a base and a neutral salt. To tell them apart, add a drop of phenolphthalein to each (or dip red litmus): the one that turns pink (or turns red litmus blue) holds the base, and the one that shows no change holds the salt.
g.

Write the physical properties of acids.

Answer

Acids taste sour; turn blue litmus red; turn methyl orange red; leave phenolphthalein colorless; and strong acids are corrosive.

h.

Write the physical properties of bases.

Answer

Bases taste bitter; feel soapy; turn red litmus blue; turn methyl orange yellow; and turn phenolphthalein pink.

i.

What is a salt? Name its main types.

Answer

A salt is the substance formed, along with water, when an acid and a base cancel each other out. Common salt (sodium chloride) is an example. Salts are of three types: neutral (common salt), acidic (alum, ammonium chloride) and basic (washing soda, baking soda).

j.

How can you make litmus-like indicator paper from a red flower? Describe briefly.

Answer

Crush the petals of a red flower (rose or hibiscus) and soak them in a little warm water. Filter the colored juice. Soak strips of white filter paper in the juice and hang them up to dry. The dried strips turn pink-red in an acid and green in a base, like litmus paper (Figure 10.2).

k.

On what basis do indicators show whether a substance is an acid, a base or a salt?

Answer

On the change in their color. An indicator has one color in an acid and another in a base, and doesn’t change in a neutral salt solution: for example, blue litmus turns red in an acid, and phenolphthalein turns pink in a base.

l.

Three bottles hold orange juice, washing soda solution and salt solution. How can you sort them into acid, base and salt with red and blue litmus paper? Explain.

Answer

Dip a red and a blue litmus strip into each.

  • Orange juice turns blue litmus red (red litmus doesn’t change): it is an acid (citric acid).
  • Washing soda solution turns red litmus blue (blue doesn’t change): it is basic. (Washing soda is a basic salt, so it acts as a base here.)
  • Salt solution changes neither strip: it is a neutral salt.
m.

List three local things used to make natural indicators.

Answer

Any three of: red cabbage leaves, turmeric, red rose or hibiscus petals, red onion skins, beetroot.

10.2 Metals and non-metals

Every substance is used for the jobs its properties suit. Aluminium and steel conduct heat well, so cooking pots are made of them. Copper conducts electricity very well, so electric wires are made of it, and plastic, which doesn’t conduct (an insulator), covers the wire to keep us safe. Elements are sorted into metals and non-metals by properties like these. Aluminium, zinc, iron, gold, copper and silver are metals; sulphur, iodine and carbon are non-metals. What other metals and non-metals do you know? Discuss in class.

Metals are elements that are usually hard and shiny, conduct heat and electricity, can be beaten into sheets (malleable) and drawn into wires (ductile), and make a ringing clink when struck.

Non-metals are elements that are usually dull, brittle when solid (they break or crumble when hammered), and don’t conduct heat or electricity; they don’t ring. Many non-metals, such as oxygen and nitrogen, are gases. Sulphur, iodine and carbon are solid non-metals.

Metal or non-metal?

Tap a sample’s name in the table and run all four tests on it. Watch out: two samples try to fool you.

iron nail
SampleShinyFlattensConductsRings
––––
––––
––––
––––
––––
––––

Run all four tests on the iron nail, then look at its row.

It shines.

It looks dull: no shine.

Hit with a hammer, it flattens out without breaking.

Hit with a hammer, it breaks into small pieces.

The bulb lights: it conducts electricity.

The bulb stays dark: it doesn’t conduct.

It rings with a clear “ting”.

Just a dull “tok”: no ring.

Iron is a metal: shiny when rubbed clean, it flattens, conducts and rings.

Copper is a metal: shiny, it flattens, conducts very well and rings.

Aluminium is a metal: shiny, it flattens into foil, conducts and rings.

Sulphur is a non-metal: dull, it breaks into powder, doesn’t conduct and doesn’t ring.

Iodine shines, yet it is a non-metal: it breaks, doesn’t conduct and doesn’t ring. One test alone can fool you.

Pencil lead is graphite (carbon), a non-metal that conducts! It snaps and doesn’t ring. One test alone can fool you.

Minerals and ores

Most metals are found in the Earth’s crust not as pure metal but joined with other elements in minerals. A mineral is a substance found naturally in the Earth’s crust, often a compound of a metal. A mineral from which a metal can be extracted easily and cheaply enough to be worth it is called an ore. So every ore is a mineral, but not every mineral is an ore. A few unreactive metals, such as gold, are found as pure metal: this is called the free (or native) state.

Aluminium

Symbol: Al. Atomic number: 13.

Aluminium is not found free in nature, only joined with other elements in compounds, mixed with other substances. It is the most abundant metal in the Earth’s crust. Its main ore is bauxite, from which it is extracted.

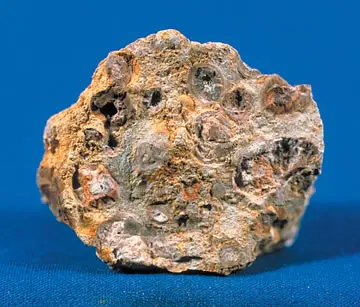

A lumpy reddish-brown and cream rock full of small rounded grains
Figure 10.5 Bauxite, the ore of aluminium. Photo: US Geological Survey, Public domain

Physical properties and uses

  • a.Aluminium is a light, silvery-white metal. So it is used to make the bodies of vehicles and airplanes (often mixed with a little of other metals to make it stronger).
  • b.It is a good conductor of electricity, and light. So the thick power lines that carry electricity across Nepal are made of aluminium wires (round a steel core for strength).
  • c.It is a good conductor of heat. So pots, pans and other utensils are made of it.
  • d.It is easily beaten into thin sheets and drawn into wires. So it is made into foil, plates and wire.
  • e.Air and water hardly affect it: a thin, tough layer of oxide forms on it at once and protects it. So aluminium foil is used to wrap food.

Zinc

Symbol: Zn. Atomic number: 30.

Zinc is found in nature as ores and compounds. Its main ore is zinc blende, from which zinc is extracted.

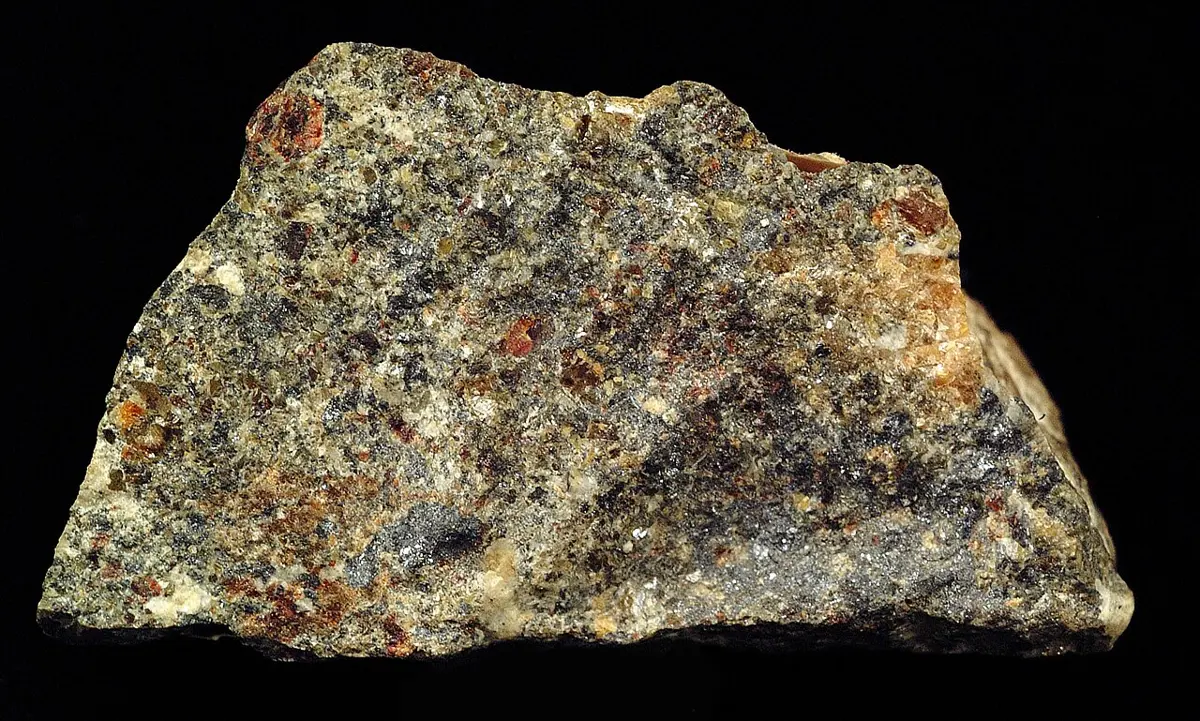

A rough gray-brown rock speckled with dark, shiny grains of zinc blende
Figure 10.6 Zinc blende (also called sphalerite), the main ore of zinc. Photo: Darla Sondrol, CC0

Physical properties

  • a.Zinc is a bluish-white metal. In the laboratory it is used as small grains (granulated zinc).
  • b.It is a good conductor of heat and electricity.
  • c.Air and water hardly affect it (a thin coat protects it).
  • d.It melts at a fairly low temperature for a metal (420 °C).

Uses

  • a.It is used in the laboratory to make hydrogen gas (with dilute acid).
  • b.It is used to make alloys such as brass (copper and zinc).
  • c.It makes the outer case of a dry cell (a torch battery).
  • d.It is used to make printing blocks.
  • e.It coats iron sheets and pipes (galvanizing) to stop them rusting: the shiny “zinc sheets” on roofs are galvanized iron.

Iron

Symbol: Fe (from its Latin name, ferrum). Atomic number: 26.

Iron is found in nature as ores. It is extracted mainly from hematite ore.

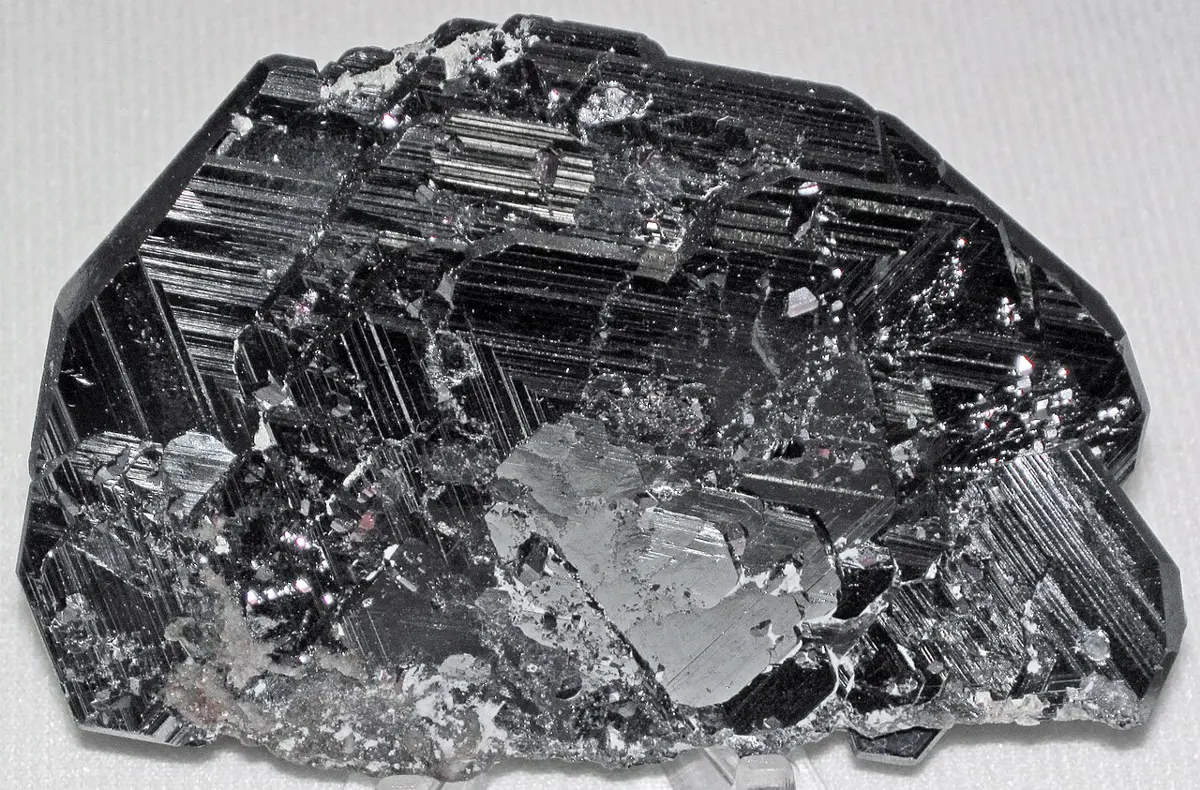

Dark, shiny gray crystals of hematite on rock
Figure 10.7 Hematite, the main ore of iron. Photo: James St. John, CC BY 2.0

Physical properties

  • a.Iron is gray; its surface often looks dark or black.
  • b.It shines when rubbed clean.
  • c.It rusts in moist air.
  • d.It is magnetic: a magnet attracts it.
  • e.Air and water easily affect it.

Uses

  • a.To make tools of all kinds.
  • b.To make household utensils, such as the karahi and tawa.
  • c.To build houses and bridges and make the bodies of vehicles.
  • d.To make steel (iron with a little carbon), which is stronger and is used for most of these jobs.
  • e.To make rods, pipes and wires.

Gold

Symbol: Au (from its Latin name, aurum). Atomic number: 79.

Gold is found in the free state (as pure metal), in rocks and as flakes and grains in the sand of rivers.

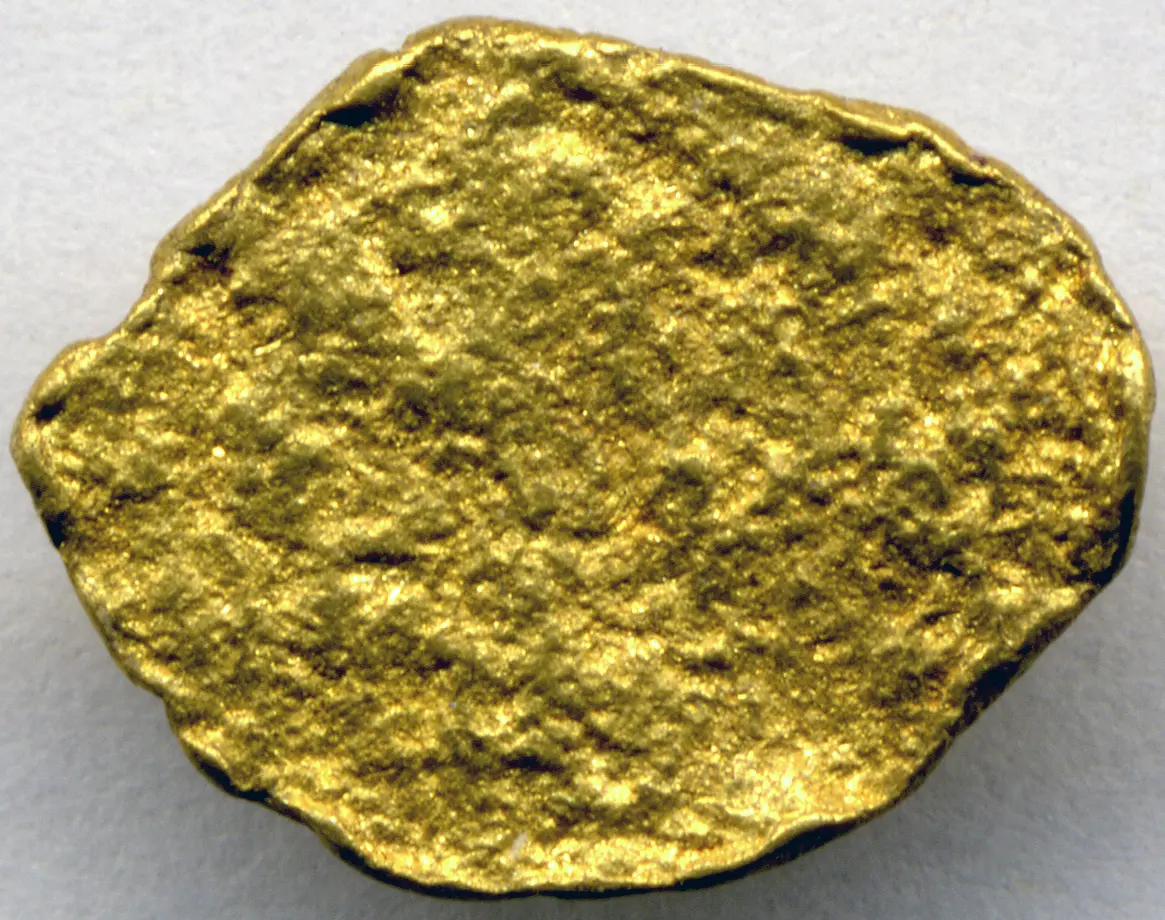

A small, rounded, bright yellow nugget of gold
Figure 10.8 A nugget of gold, found as metal (not in an ore) in river gravel. Photo: James St. John, CC BY 2.0

Physical properties

  • a.Gold is a shiny yellow metal.
  • b.It is a good conductor of heat and electricity.
  • c.It is very unreactive: air and water don’t affect it, so it never rusts or tarnishes.
  • d.It is the most malleable metal: one gram can be beaten into a sheet of about one square meter.

Uses

  • a.To make jewelry.
  • b.To make statues, coins and medals.
  • c.To plate (coat) cheaper metals.
  • d.In some medicines.
  • e.In dentistry, to cap and fill teeth.
  • f.In electronics: the contacts in your phone are plated with a thin film of gold, which never tarnishes.

Copper

Symbol: Cu (from its Latin name, cuprum). Atomic number: 29.

Copper is one of the first metals people ever used: it has been worked for at least 9000 years. It is extracted from its ore chalcopyrite.

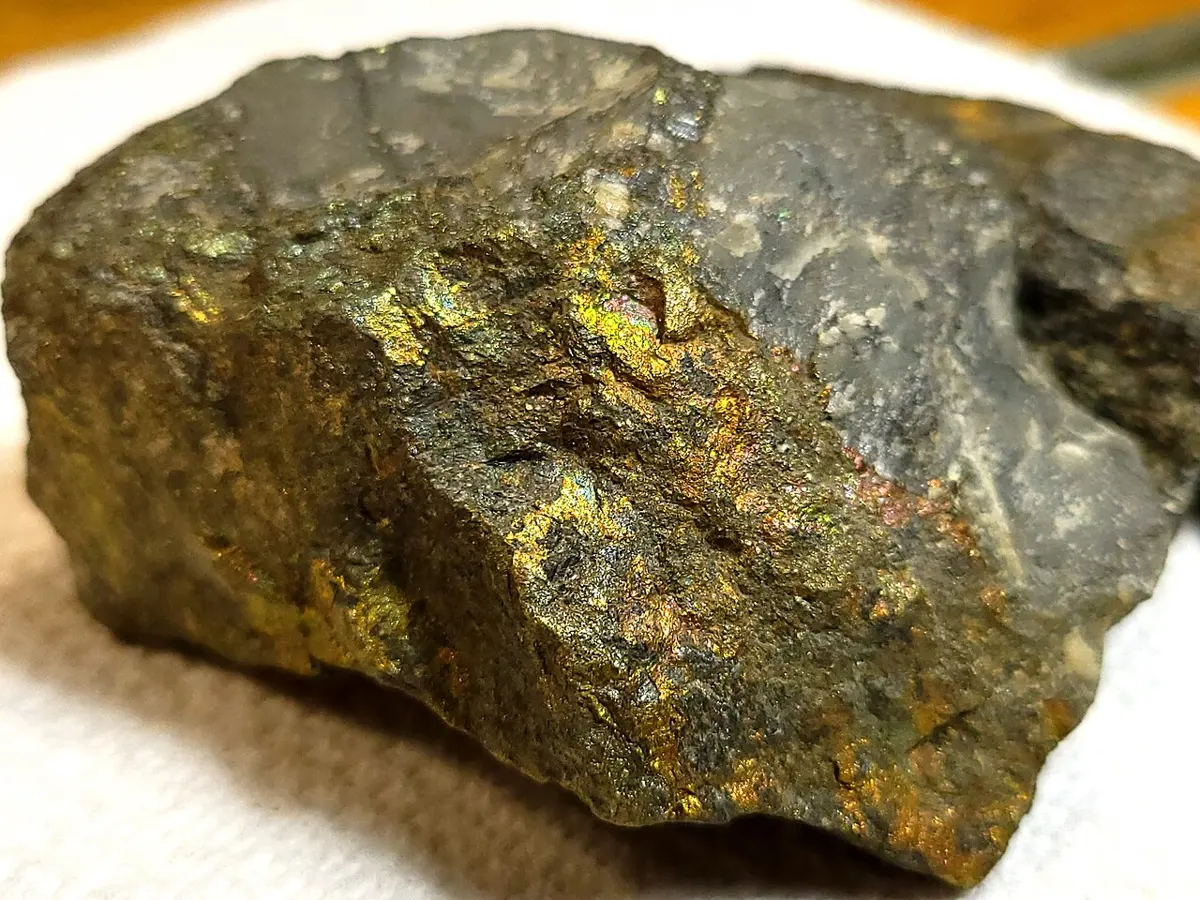

A lump of rock with brassy yellow metallic patches
Figure 10.9 Chalcopyrite, an ore of copper. Photo: TimBomBom1, CC BY-SA 4.0

Physical properties

  • a.Copper is a reddish-brown metal.
  • b.It is a very good conductor of heat and electricity (only silver is better).
  • c.In moist air it slowly goes dull, and in time it gets a green coat.
  • d.It reacts with some substances, but less readily than iron.

Uses

  • a.To make utensils, such as the gagri, the karuwa and water jugs.
  • b.As electric wire.
  • c.To make alloys such as brass (copper and zinc) and bronze (copper and tin).
  • d.To make coins, statues and medals.
  • e.To make various chemicals and medicines.

Silver

Symbol: Ag (from its Latin name, argentum). Atomic number: 47.

Silver is found as ores and compounds (and sometimes free). Its main ore is argentite, from which silver is extracted.

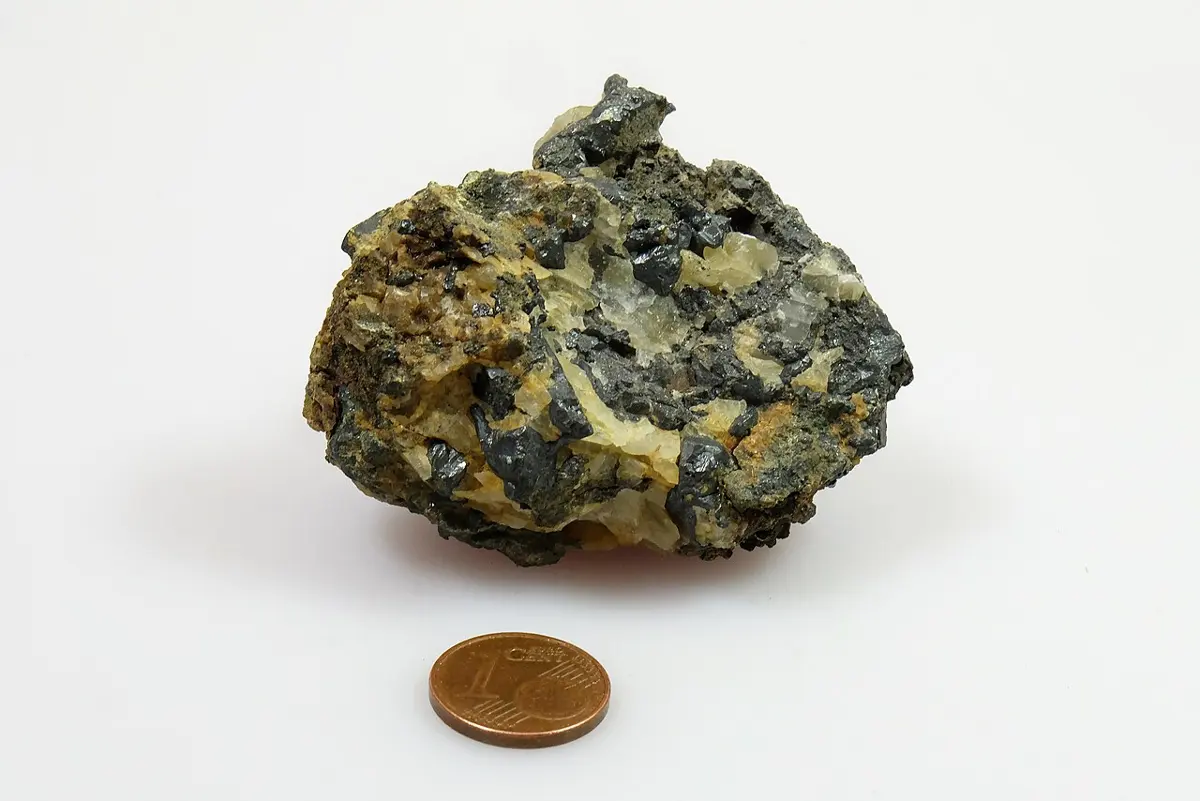

Lumps of dark gray, metallic argentite beside a small coin for size
Figure 10.10 Argentite (silver sulphide), an ore of silver. Photo: Kaethe17, CC BY-SA 4.0

Physical properties

  • a.Silver is a shiny white metal.
  • b.It is the best conductor of heat and electricity of all.
  • c.Air and water hardly affect it (only over time does it tarnish black, from traces of sulphur in the air).
  • d.It is not very reactive.

Uses

  • a.To make valuable utensils, coins and medals.
  • b.To make jewelry.
  • c.To coat (plate) other metals.
  • d.In dentistry: “silver” fillings are mercury mixed with silver, tin and copper.
  • e.In some medicines, such as creams for burns.

Sulphur

Symbol: S. Atomic number: 16.

Sulphur is a non-metal found free in nature, mostly near volcanoes. It is also found joined with metals in many compounds (sulphides). Compounds of sulphur give onion, garlic and mustard oil their strong smell and taste.

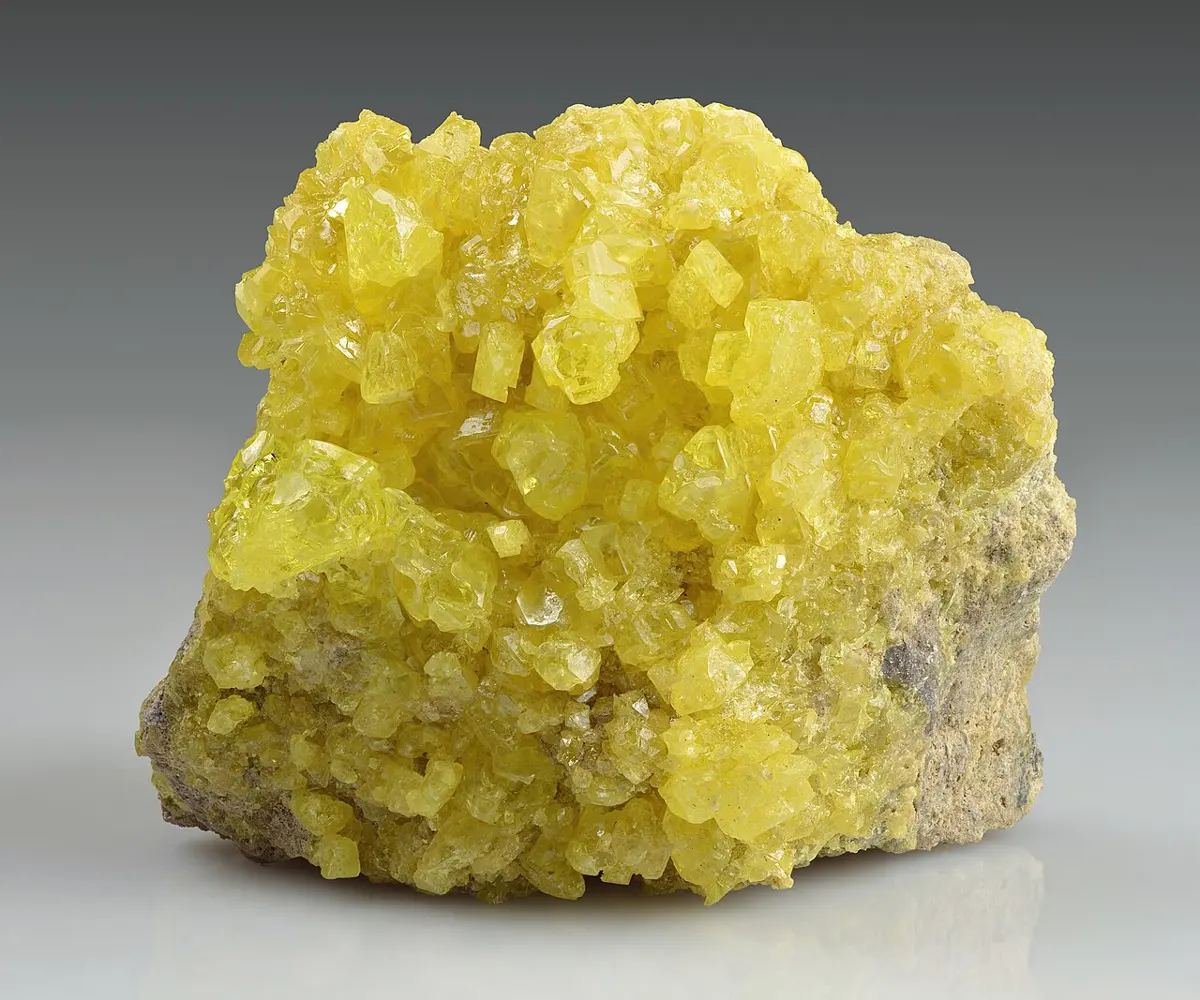

A cluster of glassy, bright yellow sulphur crystals
Figure 10.11 Crystals of sulphur from a mine near a volcano in Bolivia. Photo: Ivar Leidus, CC BY-SA 4.0

Physical properties

  • a.Sulphur is a pale yellow, brittle solid (its crystals are glassy).
  • b.It doesn’t dissolve in water.
  • c.It is a bad conductor of heat and electricity.
  • d.It doesn’t react with dilute acids.
  • e.It burns in air with a blue flame, forming sulphur dioxide, a choking gas.

Uses

  • a.To make sulphuric acid, the most used chemical in industry.
  • b.To make gunpowder.
  • c.In the heads of matchsticks.
  • d.To make firecrackers and fireworks.
  • e.In ointments for skin diseases, such as scabies.

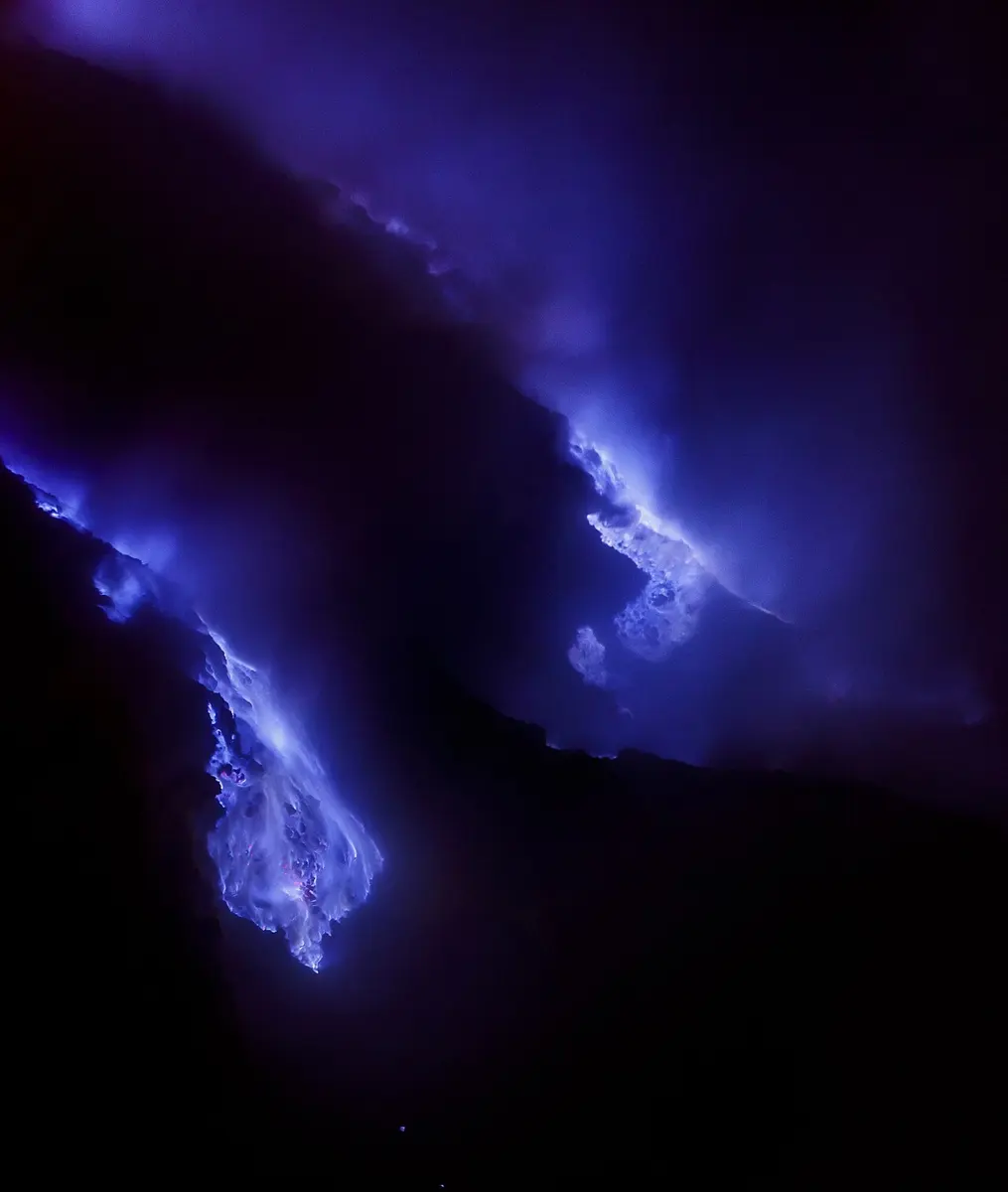

Blue flames rising from rocks in the dark at a volcano
Figure 10.12 Blue flames at night at the Ijen volcano in Indonesia. Very hot sulphur gases pour out of cracks in the rock and catch fire as they meet the air. Photo: Thomas Fuhrmann, CC BY-SA 4.0

Iodine

Symbol: I. Atomic number: 53.

Iodine is a useful non-metal. It is found, in compounds, in sea water, seaweed and many foods. Our bodies need a little of it every day: without enough, the thyroid gland in the neck swells, a disease called goiter.

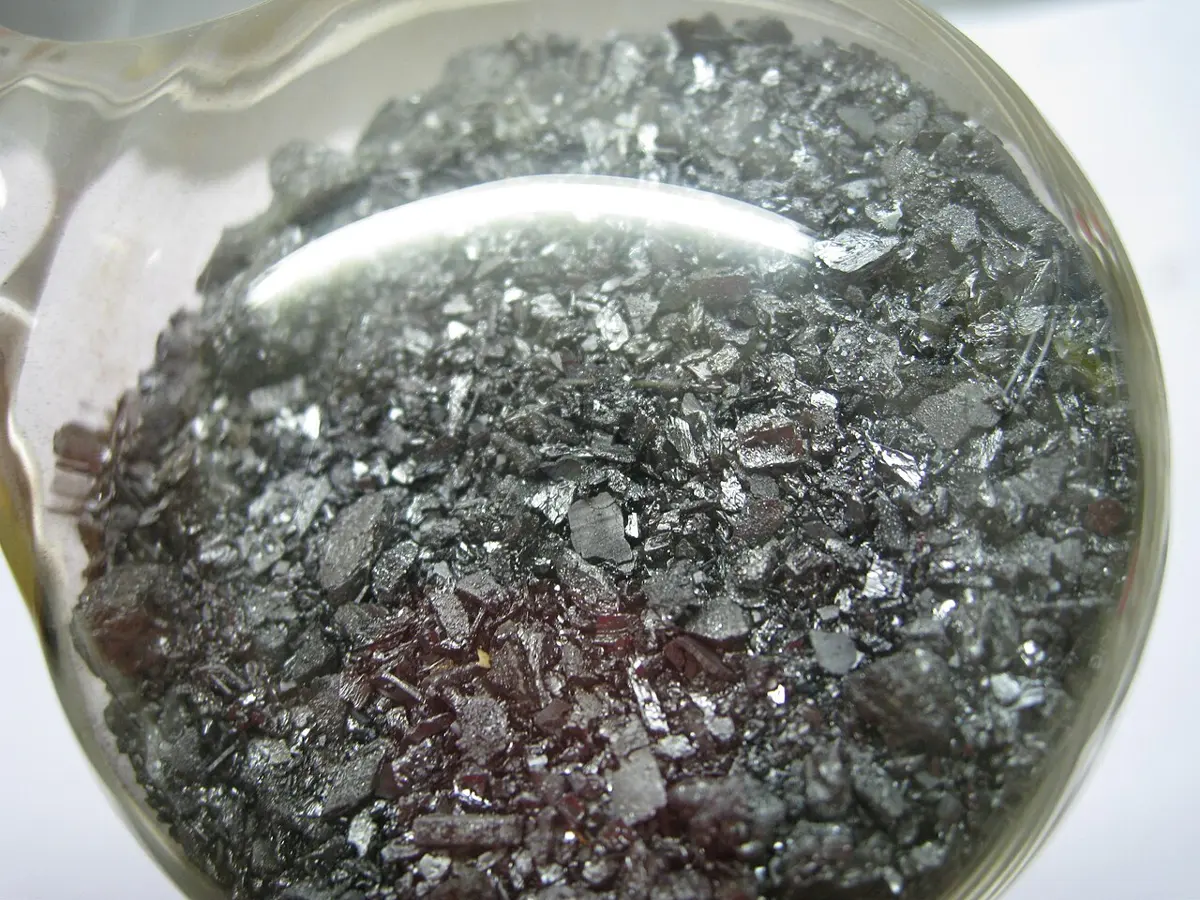

Small shiny, dark gray-violet crystals of iodine
Figure 10.13 Crystals of iodine: a non-metal with a metallic shine. Photo: Dnn87, CC BY 3.0

Physical properties

  • a.Iodine is a dark gray-violet solid with a shine, though it is a non-metal.
  • b.It dissolves only a little in water, but well in alcohol (giving a brown solution) and in chloroform (giving a violet one).
  • c.It is a bad conductor of heat and electricity.
  • d.When heated, it turns straight from a solid into a violet vapor, without melting first. This is called sublimation.

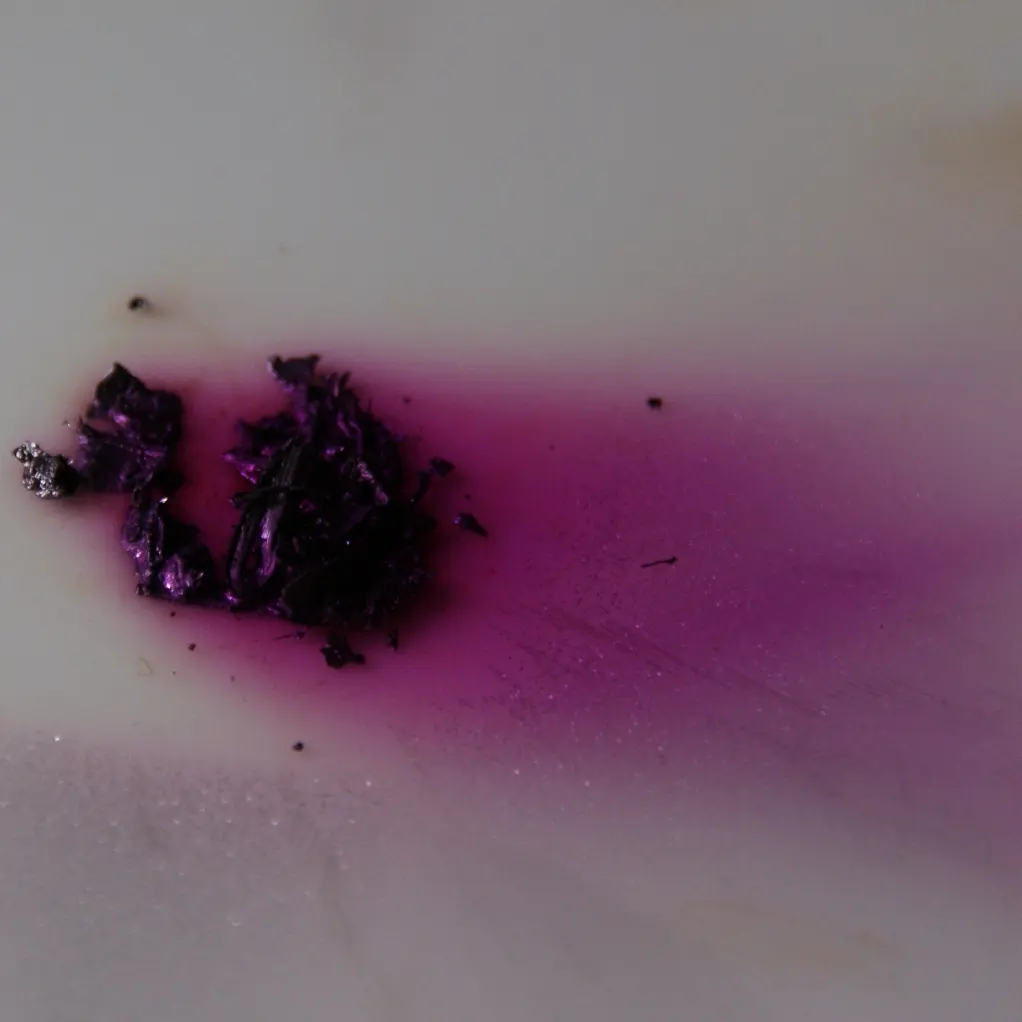

Dark iodine crystals on a white surface, with a violet haze of iodine vapor spreading round them
Figure 10.14 Iodine crystals giving off violet vapor. Iodine turns from solid to vapor slowly even at room temperature, and fast when warmed. Photo: Jurii, CC BY 3.0

Uses

  • a.To prevent goiter: a little iodine is added to common salt (iodized salt).
  • b.Iodine in a mother’s food protects her baby’s growing brain: lack of iodine before birth can cause lifelong mental disability.
  • c.To make tincture of iodine (iodine dissolved in alcohol), an antiseptic that kills germs on cuts and wounds.

A shiny, gray solid element breaks into pieces when hammered and doesn’t conduct electricity. What is it most likely to be?

Pick an answer to see why.

Exercise

1. Fill in the blanks with suitable words from the box

iodine · bad conductors · chalcopyrite · hematite · zinc · potassium chlorate

a.

Non-metals are __________ of electricity.

Answer

bad conductors

b.

A lack of __________ causes swelling of the thyroid gland.

Answer

iodine

c.

A chemical used in matchsticks is __________.

Answer

potassium chlorate (in the head of a safety match, with sulphur)

d.

__________ is used to make printing blocks.

Answer

zinc

e.

__________ is an ore of copper.

Answer

chalcopyrite

2. Choose the correct answer

a. Which of these is a property of non-metals?

Pick an answer to see why.

b. Which metal is used in galvanizing?

Pick an answer to see why.

c. Which of these is an ore of aluminium?

Pick an answer to see why.

d. Which of these metals rusts?

Pick an answer to see why.

e. Which element is added to common salt in Nepal?

Pick an answer to see why.

f. Flames are sometimes seen at night on certain hills, and some people say they are a “night ghost”. What is the best explanation?

Pick an answer to see why.

3. Give reasons

a.

Iodine is mixed with common salt.

Answer

Our bodies need a little iodine to keep the thyroid gland healthy; without it, the gland swells (goiter), and babies’ brains may not develop properly. Everyone eats salt every day, so adding iodine to salt makes sure everyone gets enough.

b.

Gold is found in the free state in nature.

Answer

Gold is very unreactive: it doesn’t combine with oxygen, water or most other substances. So, unlike most metals, it stays as pure metal in the rocks and river sand.

c.

Aluminium is used to make the bodies of vehicles and airplanes.

Answer

Aluminium is light (about a third the density of iron), strong when mixed with a little of other metals, and doesn’t rust, because a thin oxide layer protects it. A lighter vehicle or airplane needs less fuel.

d.

The handle of a pressure cooker is covered with hard plastic.

Answer

Plastic is a bad conductor of heat. The metal body of the cooker gets very hot, but the plastic handle stays cool enough to hold safely.

e.

Flames are seen at night where there is sulphur.

Answer

Sulphur burns in air with a blue flame when it is hot enough. Near volcanoes, very hot sulphur gases come out of the ground and catch fire as they meet the air. The blue flame is faint, so it is seen only at night.

4. Differentiate between

a.

Metal and non-metal

Answer
Metal Non-metal
Usually hard and shiny. Usually dull; solid ones are brittle.
Good conductor of heat and electricity. Bad conductor of heat and electricity.
Can be beaten into sheets and drawn into wires. Breaks or crumbles when hammered.
Makes a ringing sound when struck. Doesn’t ring.
Example: iron, copper, gold. Example: sulphur, iodine, carbon.
b.

Mineral and ore

Answer
Mineral Ore
A substance found naturally in the Earth’s crust, often a compound of a metal. A mineral from which a metal can be extracted easily and profitably.
Not every mineral is an ore. Every ore is a mineral.
Example: clay is a mineral of aluminium, but not its ore. Example: bauxite, the ore of aluminium.
c.

Copper and sulphur

Answer
Copper Sulphur
A metal. A non-metal.
Reddish-brown and shiny. Pale yellow and dull.
Very good conductor of heat and electricity. Bad conductor.
Can be drawn into wires. Brittle: crumbles.
Used for wires, utensils, alloys. Used for sulphuric acid, matches, gunpowder.

5. Name the metal or non-metal

a.

A yellow metal found free in nature.

Answer

Gold

b.

A metal whose surface is black or gray but shines white when rubbed, and which rusts.

Answer

Iron

c.

A yellow non-metal that burns in air.

Answer

Sulphur

d.

A non-metal that dissolves only a little in water, but dissolves in chloroform to give a violet solution.

Answer

Iodine

6. Answer the following questions

a.

Complete the table.

Metal Main ore Uses
iron
silver
copper
aluminium
Answer
Metal Main ore Uses
iron hematite tools, utensils, buildings and bridges, steel
silver argentite jewelry, coins and medals, plating
copper chalcopyrite electric wires, utensils, brass and bronze
aluminium bauxite airplanes and vehicles, utensils, foil, power lines
b.

Write the physical properties of metals.

Answer

Metals are usually hard and shiny; they conduct heat and electricity well; they can be beaten into sheets (malleable) and drawn into wires (ductile); they make a ringing sound when struck; and most have high melting points and are solid at room temperature (mercury is the exception).

c.

Metals are good conductors of heat and electricity. Explain why.

Answer

In a metal, the atoms hold their outermost electrons only loosely. These electrons are free to move about through the whole metal. When a metal is joined to a cell, the free electrons drift along it, and that flow is an electric current. When one end is heated, the free electrons pick up energy and carry it quickly to the cooler parts. Non-metals have almost no free electrons, so they conduct badly.

d.

Name the metal each object is made of, with its main feature and a main use: a. a hammered reddish-brown water jug; b. a golden-yellow oil lamp (panas) used in worship; c. a heavy black karahi.

Answer
Object Metal Main feature Main use
a.water jug copper reddish-brown, good conductor, doesn’t rust utensils, wires
b.panas (oil lamp) brass, an alloy of copper and zinc golden-yellow, shiny, doesn’t rust lamps, utensils, decorations
c.karahi iron strong, gray-black, rusts, magnetic utensils, tools, buildings
e.

Name two non-metals used in medicine, and give some other uses of non-metals.

Answer

Iodine (tincture of iodine, an antiseptic for wounds) and sulphur (ointments for skin diseases).
Other uses: iodine in iodized salt; sulphur for sulphuric acid, matches and gunpowder; carbon as charcoal fuel and graphite in pencils; oxygen for breathing (in hospitals too); nitrogen to make fertilizers; chlorine to make drinking water safe.

f.

Write the physical properties of each metal.

Metal Physical properties
iron
silver
copper
aluminium
gold
Answer
Metal Physical properties
iron gray, shines when rubbed, magnetic, rusts in moist air
silver shiny white, best conductor of heat and electricity, tarnishes only slowly
copper reddish-brown, very good conductor, goes dull and green in moist air
aluminium light, silvery-white, good conductor, doesn’t corrode (protected by its oxide layer)
gold shiny yellow, good conductor, very unreactive, most malleable metal
