Physiological Structure and Life Process

Unit 5 · CDC textbook pages 111–141

नेपालीमा पढ्नुहोस्

In this unit 10 sections
  1. Blood circulation in the human body
  2. 5.1 Human blood circulatory system
  3. 5.2 Blood
  4. 5.3 Blood group
  5. 5.4 Heart
  6. 5.5 Heart attack
  7. 5.6 Heartbeat, pulse rate or heart rate
  8. 5.7 Blood circulation
  9. 5.8 Blood pressure
  10. Exercise

Roshani’s grandfather has a painful knee. The doctor gives him a tablet, and he swallows it. A few hours later, the pain in his knee is less. But the tablet went into his stomach. How did the medicine find its way down to his knee?

The answer is a river that flows inside you, all the time, without ever stopping: your blood. It is pumped by a fist-sized muscle that has been beating since before you were born, about a hundred thousand times every day. In this unit you’ll follow that river: what blood is made of, how the heart pushes it, why blood groups matter when someone needs blood, what goes wrong in a heart attack, and what the two numbers of a blood pressure reading mean.

Blood circulation in the human body

Your body has several organ systems, each with its own job. The digestive system breaks food down into small, soluble pieces such as glucose. The respiratory system takes in oxygen. But the cells that need glucose and oxygen are everywhere: in your toes, your brain, the tips of your fingers. Something has to carry these things to every cell, and carry the wastes away. That is the job of the circulatory system.

It carries food, oxygen, water, hormones and medicines from one part of the body to another. Blood is made of blood cells (corpuscles) floating in a liquid called plasma, and it flows in one direction only, pushed by the pumping of the heart. The push of the blood on the walls of the arteries is the blood pressure, and you can feel it as your pulse.

Sometimes the blood pressure stays higher than normal, or fat and cholesterol build up on the walls of the arteries; both can damage the heart. Doctors today can open blocked arteries with angioplasty, or build a new route for the blood with bypass surgery. And not all blood is the same: there are four main blood groups, A, B, AB and O, and each can be Rh positive or Rh negative, so eight in all.

5.1 Human blood circulatory system

The blood circulatory system is one of the body’s organ systems, and it works closely with the others (digestive, respiratory, excretory…). It has three main parts:

  1. The heart: the pump. It collects blood from all over the body and pumps it out again.
  2. The blood vessels: the pipes (arteries, veins and capillaries) that carry blood to every cell.
  3. The blood: the liquid that does the carrying.

Blood carries digested food and the oxygen you breathe in to every cell. On the way back, it carries the carbon dioxide made by the cells to the lungs, and other wastes to the excretory organs (the kidneys, the skin).

lungsCO₂ out, O₂ inbody cellsO₂ and food given, CO₂ takenRALARVLVpulmonaryarterypulmonaryveinsaorta andarteriesveins andvena cavaepulmonary circulationsystemic circulation
Figure 5.1 The circulatory system in one picture, with the heart seen from the front (its right side on your left). The right side pumps blood to the lungs and back (top loop); the left side pumps it to the body and back (bottom loop). The color changes in the capillaries: in the lungs the blood takes in oxygen, in the body it gives it away. Red is blood rich in oxygen; blue is blood that has given its oxygen away. (Real blood is never blue: “deoxygenated” blood is dark red.)

5.2 Blood

A healthy adult has about 5 to 5.5 liters of blood, roughly 7 to 8 % of the body’s mass. Blood carries nutrients, oxygen and hormones to all the cells, and takes harmful wastes to the excretory organs.

Blood is slightly alkaline: its pH is 7.35 to 7.45. The body keeps it in this narrow range very carefully; if it moves outside it, a person becomes seriously ill.

Structure of blood

A microscope view of stained blood: many pink round red blood cells, one larger cell with a purple lobed nucleus in the middle, and small purple dots between the cells
Figure 5.2 A stained blood smear under a microscope. Pink discs: red blood cells. In the middle: a white blood cell (a neutrophil) with its lobed purple nucleus. The small dots: platelets. Photo: Ajay Kumar Chaurasiya, CC BY-SA 4.0

Blood looks like a red liquid, but it is a tissue: a connective tissue whose cells float in a liquid. About 55 % of it is the liquid, plasma, and 45 % is blood cells (also called blood corpuscles). There are three kinds of blood cells: red blood cells, white blood cells and platelets.

55%45%Plasma (about 55%): a pale yellow liquidabout 90% water, with proteins (albumin, globulin, fibrinogen),glucose, fats, salts, hormones, and wastes such as urea and CO₂Buffy coat (less than 1%)white blood cells and plateletsRed blood cells (about 45%)the heaviest part, so they sink to the bottom
Figure 5.3 Blood left to stand in a tube (or spun fast in a machine called a centrifuge) separates into layers.

Plasma

Have you seen the blood collected when a goat is cut for a feast? After a while it sets into a dark red lump (a clot), and a pale, watery liquid separates around it. That liquid is close to plasma.

Plasma is a pale yellow, clear liquid, about 55 % of the blood. It is about 90 % water, with about 10 % dissolved substances: glucose, amino acids, fats, salts, hormones, wastes such as urea, and three important proteins: albumin, globulin and fibrinogen.

Functions of plasma

  1. It keeps the right amount of water in the blood.
  2. It carries digested food and wastes from one place to another.
  3. It carries enzymes and hormones made by glands to the parts of the body that need them.
  4. Its protein fibrinogen helps the blood to clot.
  5. It spreads heat around the body, keeping the temperature even.
  6. It keeps the chemical make-up and pH of the blood steady.
  7. Plasma with the fibrinogen removed is called serum. (The pale liquid around the goat’s blood clot is in fact serum: the fibrinogen has been used up making the clot.) Serum is tested in laboratories to diagnose many diseases.

What is serum?

Pick an answer to see why.

Blood corpuscles

Red blood cell (erythrocyte)from abovefrom the side:thin in the middle• no nucleus: more roomfor hemoglobin• dented on both sides(biconcave): bends to squeezethrough capillaries• about 7.5 µm acrossPlateletstiny pieces of a big cell,2–3 µm, no nucleusWhite blood cells (leucocytes): bigger, with a nucleus, no hemoglobingranular (granules in the cytoplasm)neutrophilnucleus in 3–5 lobeseosinophilnucleus in 2 lobesbasophildark granulesnon-granular (no granules)lymphocyteone big round nucleusmonocyte (biggest)kidney-shaped nucleus
Figure 5.4 The three kinds of blood cells, drawn roughly to the same scale.

a. Red blood cells

Red blood cells (erythrocytes, RBCs) are small, round discs, dented in on both sides (biconcave), and they have no nucleus. They are red because they are full of a red pigment called hemoglobin.

Hemoglobin is a protein (globin) joined to an iron-containing part (heme). The iron is what grabs oxygen.

  • In the lungs, hemoglobin joins with oxygen to make oxyhemoglobin (bright red).
  • In the body, it lets the oxygen go to the cells. Some of the cells’ carbon dioxide joins it to make carbaminohemoglobin, which is carried back to the lungs. (Most carbon dioxide, though, travels dissolved in the plasma.)
About red blood cells
Number about 45 to 50 lakh (4.5 to 5 million) in each cubic millimeter of blood
Life about 120 days
Made in the red bone marrow of spongy bones, about 20 lakh every second
Destroyed in the liver and spleen; their iron is kept and used again

Making and destroying red cells goes on all through life, at the same rate, so the number stays steady.

  • Too few red cells (or too little hemoglobin) is anemia. Less oxygen reaches the cells, so an anemic person gets tired and out of breath after even a short walk, and looks pale. Lack of iron in food is the commonest cause.
  • Too many red cells is polycythemia. The blood becomes thick and flows slowly.

b. White blood cells

White blood cells (leucocytes, WBCs) have no fixed shape and are bigger than red cells. They have a nucleus and other cell parts, but no hemoglobin, so they are colorless.

They come in two kinds:

  • Granular leucocytes have small grains (granules) in their cytoplasm: neutrophils, eosinophils and basophils.
  • Non-granular leucocytes have none: lymphocytes and monocytes.
About white blood cells
Number about 4,000 to 11,000 in each cubic millimeter of blood (one for every 500 or so red cells)
Life from a few hours or days (most neutrophils) to many years (some lymphocytes)
Made in the bone marrow (lymphocytes also grow up in the lymph nodes)
Destroyed in the spleen, the liver, the lymph nodes, and at the site of an infection

White blood cells fight germs that get into the body. Some swallow bacteria whole (neutrophils and monocytes do this); lymphocytes make antibodies, proteins that stick to a germ and mark it for destruction. That’s why they are called the soldiers of the body: they give us immunity.

  • An abnormal fall in white cells is leucopenia: the person catches infections easily.
  • Leukemia is a cancer of the blood. The bone marrow makes huge numbers of abnormal white cells that don’t work properly and crowd out the healthy red cells, white cells and platelets.

c. Platelets

Platelets (thrombocytes) are the smallest blood corpuscles: tiny, round or oval, with no nucleus. They are not complete cells but pieces broken off a giant cell in the bone marrow.

About platelets
Number about 1.5 to 4.5 lakh in each cubic millimeter of blood
Life about 7 to 10 days
Made in the red bone marrow
Destroyed in the spleen (and liver)

Platelets stop bleeding. When you cut yourself:

  1. The cut blood vessel narrows, so less blood flows out.
  2. Platelets stick to the torn edge and to each other, making a plug.
  3. They release chemicals that, step by step, turn the soluble plasma protein fibrinogen into long threads of fibrin.
  4. The fibrin threads make a net that traps red cells: a clot. It dries into a scab, and the skin heals underneath.

Too few platelets, and even a small cut bleeds for a long time. Too many (thrombocytosis) can make clots form inside the blood vessels, where they may block an artery and cause a heart attack or a stroke.

A blood test shows that a girl has fewer red blood cells than normal. Which of these is she most likely to feel?

Pick an answer to see why.

Which blood cells are called the “soldiers of the body”?

Pick an answer to see why.

Functions of blood

  1. Transport. Blood carries oxygen from the lungs to the cells and carbon dioxide from the cells to the lungs. It also carries digested food, enzymes, hormones, medicines and wastes.
  2. Regulation. Blood spreads heat evenly, keeping the body’s temperature steady (that’s why your face goes red when you’re hot: more blood flows near the skin to lose heat). It also keeps the amounts of water and salts in the body steady.
  3. Protection. White blood cells fight germs, and antibodies in the blood keep us immune to diseases we’ve met before. Platelets stop bleeding from cuts and wounds.

5.3 Blood group

On the surface of every red blood cell are special molecules called antigens. Two of them, antigen A and antigen B, decide a person’s ABO blood group:

Blood group Antigens on the red cells Antibodies in the plasma
A A anti-B
B B anti-A
AB both A and B neither
O neither A nor B both anti-A and anti-B

The last column is the important one for transfusions. The plasma carries antibodies against the antigens that your own cells don’t have. Anti-A antibodies stick to any red cell carrying antigen A, glue those cells together into clumps (agglutination), and destroy them.

Group O is the most common blood group in the world. (In Nepal, A and O are about equally common, each about a third of people.)

There is one more antigen that matters a lot: the D antigen, also called the Rhesus factor or Rh factor.

  • If the red cells carry the Rh factor, the blood is Rh positive (+ve).
  • If not, it is Rh negative (−ve).

So a person who is A+ve has antigen A and the Rh factor on their red cells. A person who is O−ve has none of the three: not A, not B, not D. With four ABO groups, each positive or negative, there are eight blood groups in all.

Your blood group is inherited from your parents, through the genes you met in Unit 4, and it never changes.

Testing a blood group

To find a blood group, a drop of blood is mixed with each of three antisera: anti-A, anti-B and anti-D (each is a liquid full of one kind of antibody). Where the antiserum finds its antigen, the blood clumps; where it doesn’t, the drop stays smooth.

Find the blood group

Add the three antisera to a mystery sample. Which drops clump? Then name the group, and try a new sample.

anti-Aanti-Banti-D (Rh)

The blood group is:

Score
0 of 0

Add each antiserum to its drop and watch which drops clump.

Why the blood group must match

If a patient is given blood whose red cells carry an antigen the patient’s own cells don’t have, the patient’s antibodies attack those cells. They clump inside the blood vessels, burst, and block small vessels and the kidneys. This transfusion reaction can kill. So before every transfusion, the patient’s and the donor’s blood are tested and cross-matched to make sure they are compatible.

Who can give blood to whom?

Pick a patient and see whose red cells are safe for them. Then switch, and pick a donor.

The patient’s blood group:

Who can give red cells to this patient?

O− ✓
O+ ✓
A− ✓
A+ ✓
B− ✗
B+ ✗
AB− ✗
AB+ ✗
Antigens on its red cells
A, D
Antibodies in its plasma
anti-B
Safe matches
4 of 8

In Nepal, of every 100 blood donors about 32 are group A, 31 are O, 26 are B and 9 are AB, and only about 3 are Rh negative (Nepal Red Cross donors, 2010–2016). That is why Rh-negative blood is often hard to find.

A black and white portrait of an older man with a mustache, in a suit
Figure 5.5 Karl Landsteiner (1868–1943), who discovered the ABO blood groups in 1901. Photo: Bachrach Studios, Public domain

Rohan’s blood clumps with anti-B and anti-D, but not with anti-A. What is his blood group?

Pick an answer to see why.

A patient with blood group A+ve needs blood. Which of these donors is not safe?

Pick an answer to see why.

5.4 Heart

The heart is the central organ of the circulatory system: it pumps blood to every cell and tissue. It is made of cardiac muscle, a special muscle that contracts and relaxes rhythmically all your life without ever getting tired.

  • Where: in the chest (the thoracic cavity), between the two lungs, behind the breastbone. It is tilted slightly to the left: about two-thirds of it lies left of the middle.
  • Size and shape: about the size of its owner’s closed fist, cone-shaped (the pointed end, the apex, points down and to the left), and about 300 g in an adult.
  • Covering: a double layer of membrane, the pericardium. The narrow space between the layers holds pericardial fluid, which lets the heart move without rubbing and protects it from shocks.
  • Its own blood supply: the heart muscle works so hard that it needs its own blood vessels. The coronary arteries branch over its surface and bring oxygenated blood to the muscle; a large vein at the back, the coronary sinus, takes its deoxygenated blood back into the right auricle.
superior vena cavaright auriclecoronary arteryright ventricleinferior vena cavaaortapulmonary arteryleft auriclepulmonaryveinsleft ventricle
Figure 5.6 The outside of the heart, from the front. The coronary arteries (dark red lines) are the heart’s own blood supply.

Inside the heart

The human heart has four chambers:

  • the two upper ones, the auricles (also called atria): the right auricle and the left auricle;
  • the two lower ones, the ventricles: the right ventricle and the left ventricle.

A thick muscular wall, the septum, runs down the middle and divides the heart into a right side and a left side. It keeps the deoxygenated blood of the right side from mixing with the oxygenated blood of the left side. You can think of the heart as two pumps side by side: the right pump sends blood to the lungs, the left pump sends it to the whole body.

rightauriclerightventricleleftauricleleftventriclesuperior vena cavapulmonary arterypulmonary veinspulmonary valvetricuspid valveinferior vena cavaaortapulmonary arterypulmonary veinsbicuspid valve(mitral valve)aortic valveseptumpericardium
Figure 5.7 Inside the heart, seen from the front: the heart’s right side is on your left, as when you look at a friend facing you. The white flaps are the valves; the thin strings tie the tricuspid and bicuspid flaps to the ventricle walls. The pulmonary artery rises in front of the aorta, and its branch to the right lung passes behind the aorta and the superior vena cava.

The auricles receive blood (from the body or the lungs); the ventricles send it out (to the lungs or the body). Pumping out needs much more force than receiving, so:

  • the walls of the ventricles are thicker than those of the auricles;
  • the wall of the left ventricle is the thickest of all, because it pumps blood to the whole body, from your head to your toes, while the right ventricle pumps only to the lungs next door.

The blood vessels of the heart

Vessel Joins Carries
superior vena cava upper body → right auricle deoxygenated blood from the head, neck and arms
inferior vena cava lower body → right auricle deoxygenated blood from the trunk and legs
pulmonary artery right ventricle → lungs deoxygenated blood, to pick up oxygen
pulmonary veins (four) lungs → left auricle oxygenated blood
aorta left ventricle → whole body oxygenated blood; it is the largest artery

The four valves

Blood must flow one way only. Four valves, flaps that open only in one direction like a one-way door, make sure it does.

Valve Where Lets blood go
tricuspid valve (three flaps) between the right auricle and right ventricle right auricle → right ventricle
bicuspid or mitral valve (two flaps) between the left auricle and left ventricle left auricle → left ventricle
pulmonary valve at the start of the pulmonary artery right ventricle → pulmonary artery
aortic valve at the start of the aorta left ventricle → aorta

The pulmonary and aortic valves are called semilunar valves (their three flaps are half-moon shaped).

One heartbeat, step by step

  1. Deoxygenated blood from the body pours into the right auricle through the superior and inferior vena cava. At the same time, oxygenated blood from the lungs pours into the left auricle through the pulmonary veins.
  2. Both auricles contract together. The tricuspid and bicuspid valves are open, and blood flows into the two ventricles. (In fact most of the blood flows down into the ventricles as soon as they relax, before the auricles squeeze; the squeeze tops them up.)
  3. Then both ventricles contract together. The tricuspid and bicuspid valves are pushed shut, so blood can’t go back into the auricles.
    • In the right ventricle, the pressure opens the pulmonary valve, and deoxygenated blood goes up the pulmonary artery to the lungs.
    • In the left ventricle, the pressure opens the aortic valve, and oxygenated blood goes out through the aorta to the whole body.
  4. The ventricles relax; the pulmonary and aortic valves shut, so the blood can’t fall back in. The auricles fill again, and it all repeats.

Follow the blood through the heart

First follow one drop through the heart, step by step. Then press One real heartbeat to see how both sides work at the same moment.

rightauriclerightventricleleftauricleleftventriclefrom the bodyfrom the bodyto the rightlungto thebodyto theleft lungfrom thelungsto the head and arms
Step
1 of 6: vena cavae → right auricle2 of 6: right auricle → right ventricle3 of 6: right ventricle → lungs4 of 6: lungs → left auricle5 of 6: left auricle → left ventricle6 of 6: left ventricle → whole body1 of 3: both auricles fill2 of 3: both ventricles fill3 of 3: both ventricles squeeze
Valves open
nonetricuspidpulmonarynonemitralaorticnonetricuspid, mitralpulmonary, aortic

1. Blood that has given its oxygen to the body comes back through the superior and inferior vena cava and fills the right auricle.

Why is the wall of the left ventricle thicker than that of the right ventricle?

Pick an answer to see why.

Which valve stops blood from flowing back from the right ventricle into the right auricle?

Pick an answer to see why.

5.5 Heart attack

Normally, blood keeps flowing into the heart from the body, out of the heart to the body, and through the coronary arteries into the heart muscle itself. But sometimes the flow of blood to part of the heart muscle is suddenly reduced or blocked. That part of the muscle gets no oxygen, and it starts to die within minutes. The heart can’t work properly, and the person feels great pain and difficulty. This is a heart attack, called myocardial infarction by doctors (myocardium: heart muscle; infarction: tissue dying for lack of blood). It is an emergency.

How it happens

Over many years, fat and cholesterol can build up inside the wall of a coronary artery. This fatty deposit is called plaque. It makes the artery narrower and stiffer, so less blood gets through. One day a plaque may crack. The body treats the crack like a wound: platelets rush in and a blood clot (a thrombus) forms on it. The clot can block the artery completely, and the heart muscle beyond it is starved.

1. A healthy artery: blood flows freely2. Plaque (fat and cholesterol) builds up in the wall: the way gets narrowplaque3. The plaque cracks, a blood clot forms on it, and the artery is blockedclotno flow beyond: the muscle here starts to die
Figure 5.8 How a coronary artery gets blocked.
blood clotdamagedmusclesuperior vena cavaright auriclecoronary arteryright ventricleinferior vena cavaaortapulmonary arteryleft auriclepulmonaryveins
Figure 5.9 A heart attack: a clot blocks a coronary artery, and the muscle it supplied gets no blood.

Risk factors

These make a heart attack more likely:

  • Age: men over 45 and women over 55 are at more risk than young people.
  • Tobacco: smoking cigarettes and bidi, and chewing tobacco, gutkha and khaini, damage the arteries.
  • High blood pressure (hypertension) for a long time.
  • High cholesterol and triglycerides (fats) in the blood: “bad” cholesterol (LDL) builds up as plaque in the arteries.
  • Diabetes: high blood sugar damages the walls of the arteries.
  • Family history: a parent or grandparent who had a heart attack, especially at a young age.
  • Little exercise and an unhealthy diet: too much trans fat (in reused frying oil, vanaspati ghee), salt, sugar, animal fat and processed foods.
  • Stress: long-lasting anger, worry or negative thinking.
  • Drugs such as cocaine and amphetamines, which can make the coronary arteries clamp shut.

Symptoms

Symptoms differ from person to person. The common ones:

  1. A sudden pain, pressure or tightness in the center of the chest, which may spread to the shoulders, arms (especially the left), neck, jaw, back or upper stomach.
  2. A cold sweat, tiredness, shortness of breath.
  3. Dizziness or light-headedness, nausea.
  4. Some heart attacks come suddenly. But most people have warning signs hours, days or weeks before: a discomfort or pressure in the chest that comes with effort and doesn’t go away with rest. It means the heart muscle is already short of blood. Never ignore it.

Preventing a heart attack

  1. Live a healthy, active life.
  2. Don’t smoke or chew tobacco; avoid alcohol.
  3. Keep a healthy body weight.
  4. Eat a balanced diet: more vegetables, fruit, whole grains and pulses; less salt, sugar and fried food.
  5. Exercise regularly: walking, cycling, games, at least 30 minutes on most days.
  6. Learn to manage stress.
  7. Treat and control high blood pressure and diabetes, which raise the risk.
  8. Have regular health check-ups, especially after the age of 40.

Diagnosis and treatment

To find out whether someone has had a heart attack, doctors first check the blood pressure, pulse and temperature, and then do tests of the heart:

  • ECG (electrocardiogram): small metal pads on the chest record the heart’s electrical signals as a wavy line. A heart attack changes the shape of the waves. It is quick and is usually the first test.
  • Blood test: damaged heart muscle leaks proteins (such as troponin) into the blood.
  • Echo (echocardiogram): an ultrasound picture of the heart beating, showing which part of the wall isn’t moving well.
  • Angiography, a CT coronary angiogram, and MRI: pictures of the arteries and the heart.

Angiography

Blood vessels don’t show up clearly on an ordinary X-ray. In angiography, a special dye that X-rays can’t pass through (a contrast medium) is put into the blood, through a thin tube that the doctor guides into the coronary arteries. Then a live X-ray video (fluoroscopy) is taken. The arteries show up as dark branching lines, and any narrowing or blockage can be seen exactly. The picture is an angiogram.

A gray X-ray image of the heart's arteries filled with dark dye, with a narrowed section near the top
Figure 5.10 A coronary angiogram. The dye makes the arteries of the heart show up dark; the red arrows point to where an artery is badly narrowed. Photo: Maria A Pantaleo, Anna Mandrioli, Maristella Saponara, Margherita Nannini, Giovanna Erente, Cristian Lolli and Guido Bia, CC BY 2.0

Treatment

During a heart attack, heart muscle is dying every minute, so treatment must start fast to restore the blood flow. The patient is taken to hospital at once and given oxygen if their blood is short of it, and medicines. What comes next depends on whether the artery is partly or completely blocked, and on what the hospital has.

  • Where angiography and angioplasty aren’t available, doctors give blood thinners and clot-dissolving medicines.
  • Where they are, the blocked artery is opened with a procedure:

Coronary angioplasty and stenting (also called PCI, percutaneous coronary intervention). The cardiologist puts a long, thin, flexible tube, a catheter, into an artery in the wrist or the groin, and guides it up to the narrowed coronary artery, watching on the X-ray screen. A tiny balloon at its tip is blown up to squash the plaque against the wall. Usually a stent, a small tube of metal mesh, is left there to hold the artery open. Many stents are coated with a medicine that stops the artery from narrowing again. The patient is awake during it, and often goes home in a few days.

1. A thin tube (catheter) brings a folded balloon and stent to the narrow partballoon with the stent folded on it2. The balloon is blown up: it squashes the plaque and opens the stentballoon blown up3. The balloon is taken out; the stent stays and holds the artery openstent: a tiny tube of metal mesh
Figure 5.11 Angioplasty and stenting.

Coronary artery bypass surgery (open-heart surgery). The surgeon opens the chest and takes a healthy blood vessel from elsewhere in the body, usually a vein from the leg or an artery from inside the chest wall. One end is sewn onto the aorta and the other onto the coronary artery beyond the blockage. Blood now flows round the blockage by a new road, just as a bypass road takes traffic round a crowded bazaar. It is a big operation; it is usually planned, but is sometimes done as an emergency.

bypass graft(a vessel fromthe leg or chest)the blocked placesuperior vena cavaright auriclecoronary arteryright ventricleinferior vena cavaaortapulmonary arteryleft auriclepulmonaryveins
Figure 5.12 Bypass surgery: a new vessel takes blood from the aorta to the coronary artery beyond the block.

5.6 Heartbeat, pulse rate or heart rate

The regular, rhythmic contraction and relaxation of the heart makes a sound: the heartbeat. A doctor listens to it with a stethoscope.

The number of heartbeats in a minute is the heart rate. In a healthy adult at rest, it is 60 to 100 beats a minute. (Children’s hearts beat a little faster; a newborn baby’s about 120 to 160 times a minute.)

  • A resting heart rate below 60 a minute is bradycardia (a slow heart). It is normal in fit athletes, whose strong hearts pump more blood with each beat.
  • A resting heart rate above 100 a minute is tachycardia (a fast heart).

The heart rate changes with what the body is doing: it rises with exercise, fear, excitement and fever, and falls in sleep.

Each time the left ventricle squeezes, a wave of pressure runs along the arteries and makes their walls bulge. Where an artery lies near the skin, you can feel this bulge with your fingers: it is the pulse. Each heartbeat makes one pulse, so the pulse rate equals the heart rate, and the two words are used for the same thing. In a healthy adult, it is 60 to 100 a minute.

Measure your pulse

Find your pulse at the wrist. Then count for 15 seconds with the timer, or tap the button with every beat. Save your rate at rest, then jump on the spot for a minute and measure again.

15 s
406080100120140160180slownormal at restfast
Your pulse now
–
At rest
–
After 1 minute of jumping
–

Find your pulse, then count or tap.

Blood vessels

Blood vessels are flexible, muscular tubes that carry blood to every cell and tissue of the body. There are three kinds: arteries, veins and capillaries.

from the heartto the heartarteryarteriolecapillaries: oxygen and food out to the cells,carbon dioxide and wastes invenuleveinArterythick, muscular, elastic wallsmall space inside; no valvestunica externatunica media (muscle)tunica interna (lining)bloodCapillarywall: oneflat cellits nucleusa red cell,just fitswall one cell thick; about8 µm across (drawn far bigger)Veinthin wall, wide space inside;has valvesA vein cut lengthwisevalve open: blood flows onvalve shut: blood can’t flow backtowards the heart →
Figure 5.13 The three kinds of blood vessels: how they join, their walls (not drawn to scale), and a vein’s valves. The walls of arteries and veins have the same three layers: the outer tunica externa, the muscular tunica media and the inner lining, the tunica interna.

Arteries

An artery carries blood away from the heart to the parts of the body. Arteries have thick, muscular and elastic walls, which can stand the high pressure of the blood the ventricles push into them. The pressure is high enough to keep the blood moving forward, so arteries have no valves.

The aorta is the largest artery. It branches into smaller arteries, these into still smaller arterioles, and each arteriole into a fine network of capillaries. Arteries mostly lie deep inside the body, protected by muscle, because a cut artery loses blood very fast.

Capillaries

Capillaries are the finest blood vessels, thinner than a hair. Their wall is only one cell thick, so substances can pass through it easily. Here, the real work of the circulatory system is done:

  • from the blood to the cells: digested food, oxygen, hormones, enzymes and other substances;
  • from the cells to the blood: carbon dioxide, urea and other wastes, which the blood takes to the excretory organs.

Capillaries reach so close to every cell that almost no cell in your body is more than a hair’s width from one. After collecting the wastes, capillaries join to form venules, which join to form veins.

Veins

A vein carries blood from the parts of the body back to the heart. Its wall has the same three layers as an artery’s, but with much less muscle, so veins are thin-walled and have a wider space inside. Most of them carry deoxygenated blood rich in carbon dioxide and wastes.

By the time blood reaches the veins, it has lost most of its pressure, so it flows slowly and could easily slip backwards, especially in the legs, where it has to climb up against gravity. To stop this, veins have valves at intervals that let blood flow only towards the heart. Squeezing muscles (when you walk) press on the veins and push the blood along, from valve to valve.

Venules, veins and the vena cavae all do the same job; they differ only in size and number. Many veins lie near the skin: the blue-green lines on your wrist are veins.

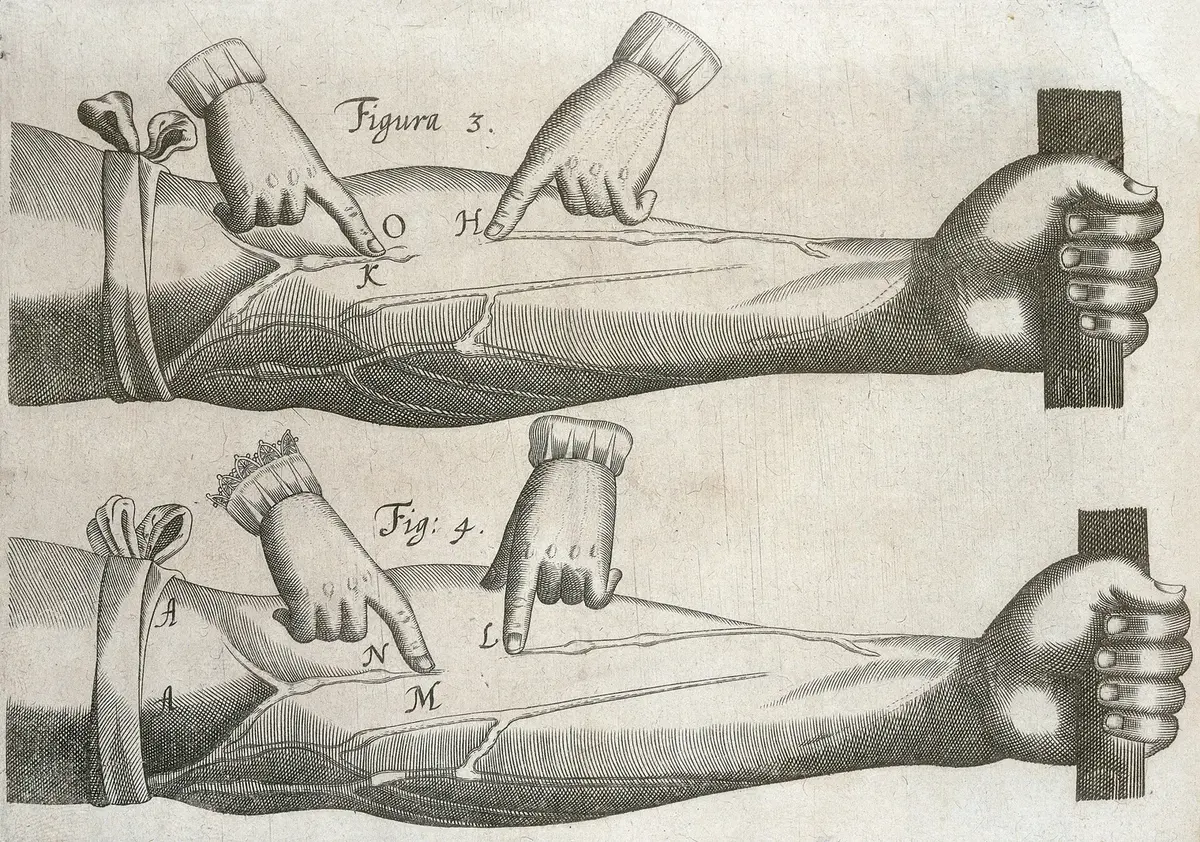

Old engravings of a man's forearm with a band tied round the upper arm and swollen veins, with fingers pressing on a vein
Figure 5.14 William Harvey’s drawings of the same experiment, from his book On the Motion of the Heart and Blood (1628). A band round the upper arm makes the veins swell; a finger presses a stretch of vein empty, and it stays empty because blood can’t flow back past a valve (the knots marked with letters). Photo: Wellcome Collection, CC BY 4.0

Why do veins have valves but arteries don’t?

Pick an answer to see why.

5.7 Blood circulation

The movement of blood from the heart to all parts of the body and back to the heart is blood circulation. An adult’s heart pumps about 5 to 6 liters of blood a minute at rest (and up to five times as much during hard exercise).

Look again at Figure 5.1. In one full trip round, blood passes through the heart twice: once on the right side and once on the left. That is why our circulation is called a double circulation. It has two parts:

  1. Systemic circulation (heart → body → heart)
  2. Pulmonary circulation (heart → lungs → heart)

Systemic circulation

When the left ventricle contracts, oxygenated blood flows into the aorta. From the aorta it goes into smaller arteries and arterioles, and through the capillaries it reaches the cells. There it gives the cells food, oxygen and other substances, and takes in the carbon dioxide and other wastes they have made. Then the capillaries join into venules and veins, the veins join to form the vena cavae, and the impure blood reaches the right auricle.

The circulation of blood from the left ventricle to all parts of the body through arteries, and back to the right auricle through veins, is called systemic circulation.

left ventricle→aorta, arteriesdifferent parts of the body→veins, vena cavaeright auricle \text{left ventricle} \xrightarrow{\text{aorta, arteries}} \text{different parts of the body} \xrightarrow{\text{veins, vena cavae}} \text{right auricle}

Pulmonary circulation

When the right ventricle contracts, the pulmonary valve opens and deoxygenated blood flows up the pulmonary artery to the lungs. There it runs through the network of capillaries around the millions of tiny air sacs, the alveoli. Carbon dioxide leaves the blood and goes into the alveoli, to be breathed out; oxygen from the air in the alveoli goes into the blood. The blood is now oxygenated, and the pulmonary veins carry it to the left auricle.

The circulation of blood from the right ventricle to the lungs and back to the left auricle is called pulmonary circulation.

right ventricle→pulmonary arterylungs→pulmonary veinsleft auricle \text{right ventricle} \xrightarrow{\text{pulmonary artery}} \text{lungs} \xrightarrow{\text{pulmonary veins}} \text{left auricle}

Systemic circulation Pulmonary circulation
between the heart and the whole body between the heart and the lungs
starts at the left ventricle, ends at the right auricle starts at the right ventricle, ends at the left auricle
oxygenated blood goes out in the aorta; deoxygenated comes back in the vena cavae deoxygenated blood goes out in the pulmonary artery; oxygenated comes back in the pulmonary veins
a long route at high pressure a short route at lower pressure
gives oxygen to the body’s cells takes oxygen from the lungs

Blood leaves the left ventricle. Which of these does it pass through next on its way back to the heart?

Pick an answer to see why.

5.8 Blood pressure

When the left ventricle contracts and pumps blood into the arteries, the blood pushes hard on their walls. The pressure exerted by the blood on the walls of the blood vessels, especially the arteries, is called blood pressure.

Blood pressure depends on:

  • how hard the ventricle contracts,
  • how much blood there is, and how much flows,
  • how wide or narrow the arteries are (narrow, stiff arteries raise the pressure).

Blood pressure is measured in millimeters of mercury (mmHg) and is written as two numbers, for example 120/80 mmHg, read “120 over 80”.

  • The upper number is the systolic pressure: the highest pressure, when the ventricles contract (systole). In an adult it is normally about 90 to 120 mmHg.
  • The lower number is the diastolic pressure: the lowest pressure, when the ventricles relax and fill again (diastole). In an adult it is normally about 60 to 80 mmHg.

The usual healthy reading for an adult is about 120/80 mmHg. Blood pressure changes with a person’s age, sex, physical activity and state of mind: it rises with exercise, anger or fear and falls in sleep.

02040608010012014000.511.522.5time (seconds)pressure (mmHg)120: systolic (the ventricle squeezes)80: diastolic (the ventricle relaxes)The pressure never drops to zero: the stretched,elastic artery walls keep pushing between beats.
Figure 5.15 The pressure in an artery rises and falls with every beat.

The instrument that measures blood pressure is the sphygmomanometer (sphygmos: pulse in Greek). An inflatable cuff is wrapped round the upper arm and pumped up until it squeezes the artery shut. Then the air is let out slowly, while the health worker listens below the cuff with a stethoscope. The pressure when the first tapping sounds are heard is the systolic pressure; the pressure when the sounds disappear is the diastolic pressure. Today, digital meters do the same thing automatically, sensing the pulses in the cuff.

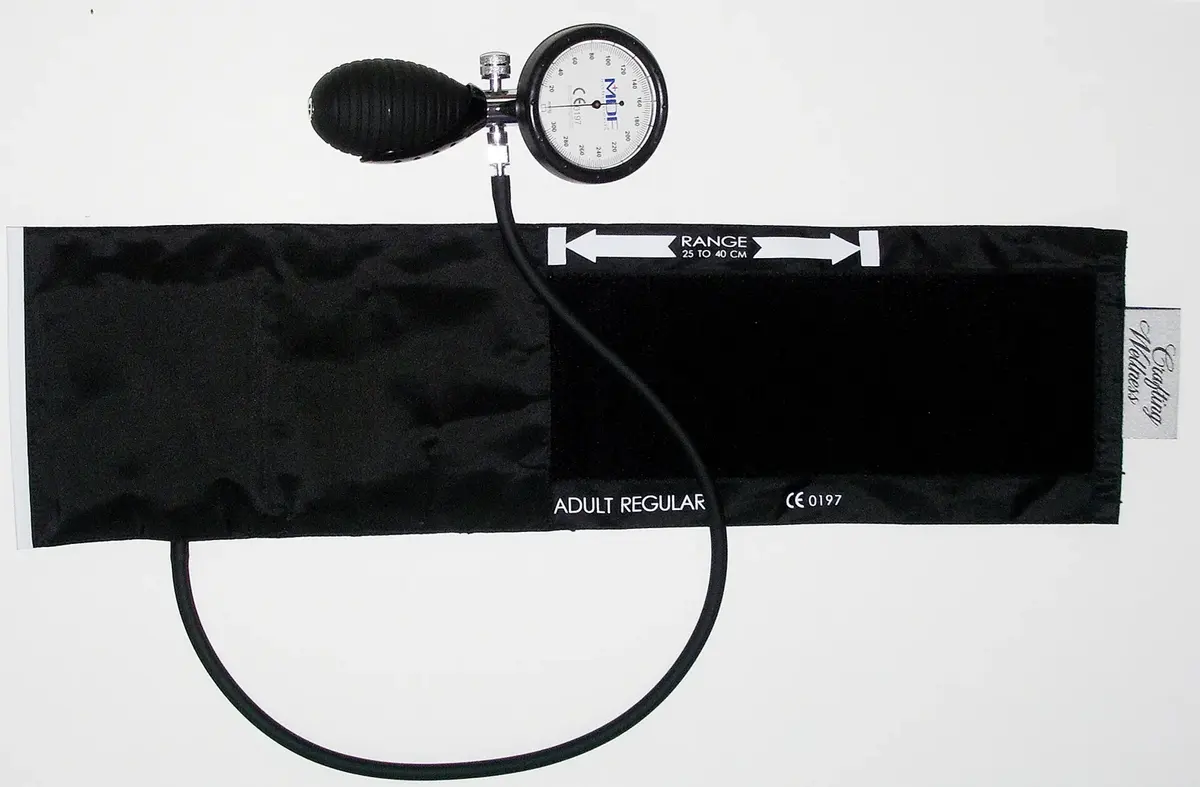

A blood pressure meter: a black cloth cuff with a rubber tube, a black squeeze bulb and a round dial gauge
Figure 5.16 A sphygmomanometer: the cuff goes round the upper arm, the bulb pumps it up, and the dial shows the pressure in mmHg. Photo: ML5 at English Wikipedia, Public domain
Reading (adult) What it means
below 90/60 mmHg low blood pressure (hypotension): may cause dizziness and fainting
about 90/60 to 120/80 mmHg normal
120/80 to 139/89 mmHg a little raised: time to look at diet and exercise
140 or more, or 90 or more (measured more than once) high blood pressure (hypertension)

(Some countries, such as the USA, now count 130/80 and above as high. Nepal, like the WHO, uses 140/90.)

High blood pressure (hypertension)

If a person’s blood pressure stays at 140/90 mmHg or more, they have high blood pressure or hypertension. The heart has to work harder against it, and over the years it damages the arteries, the heart, the kidneys, the eyes and the brain: it is a major cause of heart attacks and strokes.

Symptoms some people notice: headache, shortness of breath, nose bleeding, sweating and tiredness, a red face, sleeplessness and anxiety.

Causes:

  1. Lack of regular physical exercise.
  2. A family history of high blood pressure.
  3. Smoking and drinking alcohol regularly.
  4. Being overweight.
  5. A stressful life, in body and mind.
  6. Too much salty and fatty food (achar, chips, instant noodles and pickled meat are very salty).

Prevention: high blood pressure leads to many problems in body and mind, but it can often be avoided by paying attention in time.

  1. Watch what you eat every day: less salt, less oily food.
  2. Don’t smoke or drink alcohol.
  3. Eat a balanced diet, with plenty of vegetables and fruit.
  4. Exercise every day.
  5. Do yoga, meditation and pranayama.
  6. Check your blood pressure regularly.
  7. Live a calm, stress-free life as far as you can.
  8. Take part in games and recreational activities.

A man’s blood pressure is 160/100 mmHg, but he says he feels fine and needs no treatment. What is the best advice?

Pick an answer to see why.

Diabetes

The glucose from our food is used by the cells for energy. A hormone made by the pancreas, insulin, lets glucose pass from the blood into the cells. If the body makes too little insulin, or the cells stop responding to it, the glucose stays in the blood and the blood sugar level rises. A condition in which the blood has more glucose than normal is called diabetes (more exactly, diabetes mellitus). Too much glucose in the blood is hyperglycemia.

(For reference: a normal fasting blood sugar is about 70 to 100 mg/dL; 126 mg/dL or more, measured twice, means diabetes.)

Symptoms of high blood glucose:

  1. Great thirst and hunger.
  2. Frequent dizziness, and sometimes fainting.
  3. Frequent urination (the kidneys pass the extra sugar out in the urine, with a lot of water).
  4. Blurred vision.
  5. Losing weight and feeling tired.
  6. Muscle cramps, and numbness or tingling in the hands and feet.
  7. Wounds that heal slowly.

Causes:

  1. Too little insulin made by the pancreas.
  2. Being overweight, and an inactive life.
  3. An unbalanced diet.
  4. Too much fatty and carbohydrate-rich food (sweets, sugary drinks, white rice and refined flour in large amounts).
  5. Heredity: it runs in families.

Prevention:

  1. Eat plenty of green vegetables and fruit.
  2. Exercise regularly.
  3. Keep a healthy weight.
  4. Live an active life.
  5. Live a stress-free life.
  6. Go for a walk every morning.
  7. Eat a balanced diet.

Uric acid

Many foods contain substances called purines; the body also makes purines itself, because they are part of DNA and RNA. When purines are broken down, mainly in the liver (and a little in the intestine), they become a waste called uric acid. The blood carries uric acid to the kidneys, which pass it out in the urine.

If too much uric acid is made, or the kidneys can’t remove it fast enough, its level in the blood rises. Too much uric acid in the blood is hyperuricemia. The extra uric acid can form tiny, needle-sharp crystals in the joints, which cause the painful disease gout, and in the kidneys, where they form stones.

Symptoms of high uric acid:

  1. Pain in the joints.
  2. Deep pain in the muscles.
  3. A greater chance of kidney stones.
  4. Redness, swelling and a burning feeling over the joints.
  5. Sharp pain in the joints of the toes, especially the big toe.
  6. Difficulty in walking and moving.

Causes:

  1. The kidneys can’t remove uric acid properly, because of diabetes or another disease.
  2. Eating too much purine-rich food.
  3. Drinking too little water.

Control and prevention:

  1. Exercise regularly.
  2. Drink enough water, a little at a time, many times a day.
  3. Avoid alcohol (especially beer) and smoking.
  4. Eat cherries: they contain anthocyanins, antioxidants that may help lower uric acid.
  5. Eat less fatty red meat, organ meat (liver, kidney) and seafood. (Pulses and other plant foods are less of a worry: studies find that purines from plants raise gout risk much less than those from meat.)
  6. Eat less purine-rich food in general; avoid sugary drinks.

Exercise

1. Choose the correct option

a. Which of the following sets of organs belong to the circulatory system?

Pick an answer to see why.

b. Which of the following blood cells is without a nucleus?

Pick an answer to see why.

c. Which disease is caused by a lack of hemoglobin?

Pick an answer to see why.

d. How many chambers are there in the human heart?

Pick an answer to see why.

e. What causes the systolic pressure on the wall of an artery when the ventricle contracts?

Pick an answer to see why.

f. The results of Rohit’s blood test are shown in the table. What is his blood group?

Antiserum anti-A anti-B anti-D
Blood clot (clumping) seen seen not seen

Pick an answer to see why.

g. A person is thirstier and hungrier than usual, feels dizzy and sometimes faints, urinates often and has blurred vision. What is the problem?

Pick an answer to see why.

h. Which test is the right one to find a blockage in a coronary artery when someone has chest pain?

Pick an answer to see why.

i. Saambhawi hurt her leg on a stone while playing at school. Whatever was done, the bleeding didn’t stop. What is the reason?

Pick an answer to see why.

j. Rasmila’s grandfather gets swollen joints and pain in his body when he eats red meat, legumes and fried food. What is his problem?

Pick an answer to see why.

2. Write the differences

a.

Red blood cell and white blood cell

Answer
Red blood cell (RBC) White blood cell (WBC)
Biconcave, disc-shaped. No fixed shape.
No nucleus. Has a nucleus.
Contains hemoglobin, so it is red. No hemoglobin; colorless.
45–50 lakh per mm³ of blood. 4,000–11,000 per mm³.
Lives about 120 days. Lives from hours to years.
Carries oxygen (and some carbon dioxide). Fights germs; gives immunity.
b.

Auricle and ventricle

Answer
Auricle (atrium) Ventricle
The upper chambers of the heart. The lower chambers.
Receive blood: from the body (right) or the lungs (left). Send blood out: to the lungs (right) or the body (left).
Thin walls. Thick, muscular walls.
Joined to veins (vena cavae, pulmonary veins). Joined to arteries (pulmonary artery, aorta).
c.

Artery and vein

Answer
Artery Vein
Carries blood away from the heart. Carries blood to the heart.
Mostly oxygenated blood (except the pulmonary artery). Mostly deoxygenated blood (except the pulmonary veins).
Thick, muscular, elastic wall; narrow space inside. Thin wall; wide space inside.
No valves. Valves at intervals.
Blood flows fast, in spurts, at high pressure. Blood flows slowly and smoothly, at low pressure.
Mostly deep in the body. Many near the surface.
d.

Pulmonary circulation and systemic circulation

Answer
Pulmonary circulation Systemic circulation
Between the heart and the lungs. Between the heart and all other parts of the body.
From the right ventricle to the left auricle. From the left ventricle to the right auricle.
Deoxygenated blood goes out (pulmonary artery), oxygenated returns (pulmonary veins). Oxygenated blood goes out (aorta), deoxygenated returns (vena cavae).
Short route, lower pressure. Long route, high pressure.
Blood picks up oxygen. Blood gives oxygen to the cells.
e.

Systolic and diastolic blood pressure

Answer
Systolic pressure Diastolic pressure
The highest pressure in the arteries. The lowest pressure in the arteries.
When the ventricles contract. When the ventricles relax.
The upper (first) number of a reading. The lower (second) number.
Normally about 90–120 mmHg in an adult. Normally about 60–80 mmHg in an adult.
f.

Anemia and hemophilia

Answer
Anemia Hemophilia
Too few red blood cells or too little hemoglobin. The blood can’t clot properly.
Usually caused by a lack of iron (or vitamins) in the diet, or by losing blood. Inherited: a clotting protein is missing.
The person is tired, pale and short of breath. Cuts and injuries bleed for a long time.
Usually treated with iron-rich food and iron tablets. Treated by giving the missing clotting factor.
g.

Angiogram and open-heart surgery

Answer
Angiogram Open-heart (bypass) surgery
A test: it finds a blockage. A treatment: it gets blood past a blockage.
A dye is put into the arteries through a thin tube, and an X-ray is taken. The chest is opened and a healthy vessel is sewn on to carry blood around the block.
The chest isn’t opened; the patient stays awake. A big operation under general anesthesia.
Takes less than an hour. Takes several hours, with weeks of recovery.
h.

Platelets and white blood cells

Answer
Platelets White blood cells
The smallest blood corpuscles; pieces of a large cell. Bigger than red cells; whole cells.
No nucleus. Have a nucleus.
1.5–4.5 lakh per mm³. 4,000–11,000 per mm³.
Live about 7–10 days. Live from hours to years.
Help the blood clot. Fight germs.

3. Give reasons

a.

Blood is red.

Answer

Red blood cells contain a red pigment, hemoglobin, whose iron-containing part gives it its color. There are so many red cells (about 5 million in each cubic millimeter) that the whole blood looks red.

b.

White blood cells are like the soldiers of the body.

Answer

White blood cells defend the body: they find germs that get in, swallow and destroy them, and make antibodies against them. Like soldiers guarding a country, they protect the body from infection and give it immunity.

c.

The wall of a ventricle is more muscular (thicker) than the wall of an auricle.

Answer

The auricles only push blood a short way down into the ventricles. The ventricles must pump blood out of the heart, to the lungs or all round the body, at high pressure. That needs much more force, so their walls have more muscle.

d.

The wall of the left ventricle is thicker than the wall of the right ventricle.

Answer

The right ventricle pumps blood only to the lungs, which are close by. The left ventricle pumps blood through the aorta to every part of the body, from head to toe, which needs a much higher pressure. So it has a thicker, stronger wall.

e.

Arteries do not have valves but veins do.

Answer

Blood in the arteries is under high pressure from the heart, which keeps it flowing forward, so no valves are needed. By the time blood reaches the veins its pressure is low and it flows slowly, often uphill (from the legs), so it could flow backwards. Valves in the veins let it flow only towards the heart.

f.

A person with anemia feels tired after a short walk.

Answer

An anemic person has too few red cells or too little hemoglobin, so the blood carries less oxygen. When they walk, their muscles need more oxygen to release energy from food, but don’t get enough. So they tire quickly and get out of breath.

g.

Arteries lie deep inside the muscles, but many veins are near the surface.

Answer

Blood in arteries flows at high pressure, so a cut artery would lose a lot of blood very quickly; lying deep, protected by muscle, they are safer from injury. Veins have low pressure, so an injury to one is less dangerous, and many lie near the surface (where pressing muscles also help push their blood along).

h.

The blood group should be tested before a transfusion.

Answer

If a patient gets red cells carrying an antigen (A, B or D) that their own cells don’t have, the patient’s antibodies attack those cells: they clump together and burst inside the blood vessels, which can block the vessels and kidneys and kill the patient. Testing the blood groups (and cross-matching) makes sure the donor’s blood is compatible.

i.

Blood clots slowly, or not at all, in a person with hemophilia.

Answer

In hemophilia, an inherited disease, the blood lacks one of the clotting proteins needed to turn fibrinogen into a net of fibrin. Without that net, a firm clot can’t form, so bleeding goes on for a long time. (A low platelet count also slows clotting, but that condition is called thrombocytopenia.)

4. Answer the following questions

a.

Describe the main parts of the human circulatory system.

Answer
  1. Heart: a four-chambered muscular pump in the chest, between the lungs. Its right side pumps deoxygenated blood to the lungs; its left side pumps oxygenated blood to the body.
  2. Blood vessels: arteries carry blood away from the heart, capillaries exchange substances with the cells, and veins bring blood back to the heart.
  3. Blood: a liquid tissue of plasma (55 %) with red blood cells, white blood cells and platelets (45 %). It carries oxygen, food, hormones and wastes, fights germs and clots wounds.
b.

Write the main functions of blood.

Answer
  1. Transport: carries oxygen from the lungs to the cells and carbon dioxide back; carries digested food, hormones, enzymes and wastes.
  2. Regulation: keeps the body temperature, the amount of water and salts, and the pH steady.
  3. Protection: white blood cells and antibodies fight germs; platelets and fibrinogen clot the blood to stop bleeding.
c.

When any part of the body is injured, the bleeding stops after a while. Why?

Answer

At a cut, the blood vessel narrows, and platelets stick to the damaged edge and to each other to form a plug. They release chemicals that turn the plasma protein fibrinogen into threads of fibrin. The fibrin forms a net that traps blood cells, making a clot that seals the wound, so the bleeding stops.

d.

Ramila gets tired even after walking a short distance and finds it hard to breathe. What is the reason? Explain.

Answer

She probably has anemia: too few red blood cells or too little hemoglobin, often from a lack of iron in her diet. Her blood can’t carry enough oxygen, so when she walks her muscles run short of oxygen and tire quickly, and she breathes hard to try to get more. She should see a doctor, and eat iron-rich food (green leafy vegetables like saag, beans, meat, eggs).

e.

A person’s blood pressure is 130/90 mmHg. What does this mean?

Answer

130 mmHg is the systolic pressure, when the ventricles contract; 90 mmHg is the diastolic pressure, when they relax. The normal adult reading is about 120/80 mmHg, so both numbers are higher than normal. The systolic pressure (130) is raised but below 140; the diastolic pressure (90) has reached the limit for high blood pressure: doctors (and the WHO) count 140 or more or 90 or more as hypertension. If it stays like this when measured again, the person has high blood pressure and should see a doctor, eat less salt and oily food, and exercise regularly.

f.

Which device is used to measure blood pressure?

Answer

A sphygmomanometer: an inflatable cuff wrapped round the upper arm, with a gauge (or a digital meter) that reads the pressure in mmHg.

g.

Before a blood transfusion, the doctor checks the blood groups of the donor and the patient. Why?

Answer

The patient’s plasma has antibodies against the A and B antigens their own red cells lack (and Rh-negative people can make anti-D). If the donor’s red cells carry such an antigen, the antibodies make them clump and burst inside the patient’s blood vessels, a reaction that can be fatal. Checking (and cross-matching) makes sure the blood is compatible.

h.

Sarita’s grandmother urinates often, feels tired, has muscle cramps, numbness in her hands and legs, and is always thirsty. What is her problem?

Answer

These are the symptoms of diabetes: too much glucose in the blood (hyperglycemia), because her body makes too little insulin or doesn’t respond to it. The kidneys pass out the extra sugar with a lot of water (frequent urination, thirst); high sugar damages the nerves (numbness); and her cells can’t use the glucose for energy (tiredness). She should have her blood sugar tested.

i.

Mention the effects of high blood pressure, and how to prevent it.

Answer

Effects: the heart must work harder, and over time the walls of the arteries are damaged and narrowed. This can lead to heart attack, heart failure, stroke (a burst or blocked blood vessel in the brain), kidney damage and damage to the eyes. It can cause headaches, nosebleeds, breathlessness, tiredness and sleeplessness, though often there are no symptoms.

Prevention: eat less salt and oily food; eat a balanced diet with plenty of vegetables and fruit; exercise daily; keep a healthy weight; don’t smoke or drink alcohol; manage stress (yoga, meditation, pranayama, recreation); and have the blood pressure checked regularly.

j.

The respiratory, digestive and circulatory systems are interrelated. Explain with reasons.

Answer
  • The digestive system breaks food into simple, soluble substances such as glucose, which are absorbed into the blood.
  • The respiratory system takes oxygen into the lungs, where it passes into the blood.
  • The circulatory system carries both glucose and oxygen to every cell. There, respiration uses them to release energy, and makes carbon dioxide, which the blood carries back to the lungs to be breathed out.

Without digestion there would be no food for the cells; without breathing, no oxygen to release its energy; and without circulation, neither would reach the cells. The systems depend on each other.

k.

How is high or low blood pressure detected?

Answer

By measuring it with a sphygmomanometer (manual or digital). The cuff is pumped up round the upper arm to squeeze the artery shut, then let down slowly; the pressure when the pulse sounds start is the systolic pressure, and when they stop, the diastolic. A reading of 140/90 mmHg or more, found more than once, means high blood pressure; a reading below 90/60 mmHg means low blood pressure. Because high blood pressure often has no symptoms, regular checking is the only sure way to find it.

l.

Four pictures show (1) a person swallowing a tablet, (2) the digestive system, (3) the circulatory system, and (4) a painful knee. What process do they show? Which systems take part? If the system in picture 3 were absent, how could the medicine swallowed in picture 2 still reach the knee? Explain.

Answer

They show how a medicine taken by mouth reaches the place where it is needed: it is swallowed, absorbed from the stomach and small intestine into the blood (digestive system), and carried by the blood round the body to the knee (circulatory system). So the digestive and circulatory systems take part.
Without the circulatory system, the medicine could only spread by diffusion, the slow spreading of molecules from where there are many to where there are few. Diffusion works over a fraction of a millimeter, but over the distance from the stomach to the knee it would take years. In practice the medicine would not reach the knee in time to help. That is exactly why large animals need a circulatory system.

m.

Answer the questions using the table.

Cell Shape Nucleus Made in Destroyed in
X biconcave absent bone marrow liver and spleen
Y irregular present bone marrow, lymph nodes liver, spleen, site of infection
Z round absent bone marrow spleen
  • i.Which blood cell’s shortage causes anemia?
  • ii.What problem arises when the number of Y cells rises far above normal?
  • iii.If a person’s blood clots slowly or not at all, which cells are below normal? What is the condition called?
Answer

X is the red blood cell, Y the white blood cell, Z the platelet.

  • i.A shortage of X, the red blood cells, causes anemia.
  • ii.A large, abnormal rise in Y, the white blood cells, can mean leukemia (blood cancer), in which abnormal white cells crowd out the normal blood cells. (A smaller rise usually just means the body is fighting an infection.)
  • iii.Z, the platelets, are below normal. A low platelet count is called thrombocytopenia. Some books call this hemophilia, but hemophilia is an inherited lack of a clotting protein, with normal platelets. An answer that is right either way: “Z, the platelets: thrombocytopenia. (Slow clotting with normal platelets is hemophilia, a missing clotting protein.)”
n.

While walking on the road, Sarita saw an old man with chest pain. She rushed him to hospital. The first examination suggested he might have a heart problem. Which test would be right to find out his heart’s condition? Explain with a reason.

Answer

First an ECG: it is quick and shows whether the heart muscle is short of blood or has been damaged (along with a blood test for troponin). If it points to a heart attack, an angiogram (angiography) is done: a dye is put into the coronary arteries and an X-ray taken, which shows exactly which artery is narrowed or blocked and how badly. Then the doctors can open it at once with angioplasty and a stent, or plan bypass surgery.

o.

Explain the blood circulation in the human body with a diagram.

Answer

Draw Figure 5.1. Blood flows through the heart twice in one round (double circulation):

  1. Pulmonary circulation: the right ventricle pumps deoxygenated blood through the pulmonary artery to the lungs; there it gives up carbon dioxide and takes in oxygen; the pulmonary veins bring the oxygenated blood to the left auricle, which passes it into the left ventricle.
  2. Systemic circulation: the left ventricle pumps oxygenated blood into the aorta, which branches into arteries, arterioles and capillaries in every organ. In the capillaries the blood gives oxygen and food to the cells and takes their carbon dioxide and wastes. Venules and veins bring the deoxygenated blood to the vena cavae, which empty into the right auricle, which passes it to the right ventricle, and the cycle repeats.

Valves keep the blood moving one way.

p.

Write the preventive measures for hyperuricemia.

Answer
  1. Exercise regularly and keep a healthy weight.
  2. Drink enough water, a little at a time, many times a day.
  3. Avoid alcohol (especially beer) and smoking.
  4. Eat less purine-rich food: fatty red meat, organ meat (liver, kidney), and seafood; avoid sugary drinks.
  5. Eat cherries and other fruit, and plenty of vegetables.
  6. Get diseases that harm the kidneys, like diabetes, treated.
q.

Explain the internal structure of the human heart with a neat, labeled diagram.

Answer

Draw Figure 5.7 and label it. The heart has four chambers: two upper, thin-walled auricles (right and left) that receive blood, and two lower, thick-walled ventricles that pump it out. A muscular septum separates the right side (deoxygenated blood) from the left (oxygenated blood); the left ventricle has the thickest wall.

Vessels: the superior and inferior vena cava bring deoxygenated blood from the body to the right auricle; the pulmonary artery takes it from the right ventricle to the lungs; the pulmonary veins bring oxygenated blood from the lungs to the left auricle; the aorta takes it from the left ventricle to the body.

Valves: the tricuspid valve (right auricle → right ventricle), the bicuspid or mitral valve (left auricle → left ventricle), the pulmonary valve (right ventricle → pulmonary artery) and the aortic valve (left ventricle → aorta) keep blood flowing one way.

r.

Explain the main causes of a heart attack.

Answer

A heart attack happens when the blood supply to part of the heart muscle is cut off. Over years, plaque of fat and cholesterol builds up in the walls of the coronary arteries, narrowing them; if a plaque cracks, a blood clot forms on it and blocks the artery, and the muscle beyond it dies for lack of oxygen.
What makes this more likely: age (men over 45, women over 55), smoking and chewing tobacco, high blood pressure, high cholesterol and triglycerides, diabetes, a family history of heart attacks, lack of exercise and an unhealthy diet (trans fat, salt, sugar, animal fat, processed food), long-term stress, and drugs such as cocaine.

s.

Introduce the angiogram and its importance.

Answer

Blood vessels don’t show on an ordinary X-ray. In angiography, a thin tube (catheter) is passed through an artery in the wrist or groin up to the heart, and a dye that blocks X-rays (contrast medium) is injected into the coronary arteries while a live X-ray is taken. The X-ray picture of the arteries is the angiogram.
Importance: it shows exactly where an artery is narrowed or blocked, and how badly. This tells the doctors which treatment is needed (medicines, angioplasty with a stent, or bypass surgery), and the blockage can often be opened with a stent straight away, through the same tube.

t.

Give a brief introduction to open-heart surgery.

Answer

Coronary artery bypass surgery is called open-heart surgery because the chest is opened. It is done when coronary arteries are badly blocked. The surgeon takes a healthy blood vessel from the patient’s own body (a vein from the leg or an artery from inside the chest wall) and sews one end to the aorta and the other to the coronary artery beyond the blockage. Blood then flows around the blockage through this new path (a bypass graft), and the heart muscle again gets oxygen and food. It is a major operation, usually planned, though sometimes done as an emergency during a heart attack.

u.

When Samip’s blood was tested, his white blood cell count was outside the normal range. Which symptoms may appear in his body? Give a reason.

Answer

The normal count is 4,000 to 11,000 per mm³.

  • If his count is well above 11,000, his body is probably fighting an infection: he may have a fever, pain, swelling or pus where the infection is, and feel weak. A very high count of abnormal white cells could be leukemia, with tiredness, paleness, easy bruising and frequent infections, because the abnormal cells crowd out the normal blood cells.
  • If his count is below 4,000 (leucopenia), he has fewer germ-fighters, so he will catch infections easily and take long to get better.
v.

Harish’s blood test showed a high level of fibrinogen in his plasma. Does this affect his blood circulation? Explain with a reason.

Answer

Yes. Fibrinogen is the protein that forms the fibrin net of a blood clot, and it also makes the blood thicker. Too much of it makes the blood clot too easily, even inside the blood vessels. A clot can block a coronary artery (heart attack) or a brain artery (stroke), or a deep vein in the leg. Thicker blood also flows less easily, so the heart has to work harder. So a high fibrinogen level raises the risk of heart and circulation problems.

w.

Study the table and answer.

Person Injury Flow of blood from the injured part
X superficial bled continuously; ordinary first aid didn’t stop it
Y deep bled with high pressure; ordinary first aid stopped it
Z superficial bled for a while and stopped
  • i.Which person has hemophilia?
  • ii.In which person is an artery injured?
  • iii.Which injury, Y’s or Z’s, is more dangerous? Give a reason.
Answer
  • i.X. A shallow cut that won’t stop bleeding means the blood isn’t clotting.
  • ii.Y. Blood coming out under high pressure (spurting) means an artery is cut; arteries lie deep and carry blood at high pressure.
  • iii.Y’s. A cut artery loses blood very fast because of its high pressure, and a person can lose a dangerous amount in minutes. Z’s cut was shallow and clotted normally by itself.
x.

Study the concept map: Left ventricle → Kidney → Left auricle.

  • i.What type of circulation does it show?
  • ii.In which parts of the map do arteries and veins play a role?
Answer
  • i.Systemic circulation: blood goes from the left ventricle to an organ of the body (the kidney) and back to the heart.
  • ii.Arteries carry the blood from the left ventricle to the kidney (aorta → renal artery). Veins carry it from the kidney back to the heart (renal vein → inferior vena cava).

Note: the map has a mistake. Blood from the kidney returns to the right auricle, not the left auricle. The left auricle receives blood only from the lungs.

y.

Look at the diagram and answer.

  • i.Write two differences between blood vessels 15 and 18.
  • ii.What are the functions of valves 11 and 13?
  • iii.What happens if part 4 is absent?
  • iv.Name parts 6, 7, 8 and 9.
68791816171314191511124
Figure 5.17 The heart, with its parts numbered.
Answer

(i) 15 is the aorta; 18 is the superior vena cava.

15: Aorta 18: Superior vena cava
An artery: carries blood away from the heart, from the left ventricle to the body. A vein: carries blood to the heart, from the upper body to the right auricle.
Oxygenated blood. Deoxygenated blood.
Thick, muscular wall; high pressure. Thinner wall; low pressure.
  • ii.11 is the bicuspid (mitral) valve: it lets blood pass from the left auricle into the left ventricle, and shuts when the ventricle contracts so blood can’t flow back into the auricle. 13 is the pulmonary valve: it opens to let blood from the right ventricle into the pulmonary artery, and shuts when the ventricle relaxes so blood can’t flow back into it.
  • iii.4 is the pericardium. Without it, the heart would not be protected from shocks and injuries, and with no pericardial fluid it would rub against the lungs and chest wall with every beat.
  • iv.6: right auricle; 7: left auricle; 8: right ventricle; 9: left ventricle.
z.

Draw neat, labeled diagrams of:

  • i.the external structure of the human heart
  • ii.the internal structure of the human heart
  • iii.arteries, veins and capillaries
  • iv.pulmonary circulation
  • v.systemic circulation
Answer

Use these figures as your guide, and label every part:

  • i.External structure: Figure 5.6.
  • ii.Internal structure: Figure 5.7.
  • iii.Arteries, veins and capillaries: Figure 5.13.
  • iv.Pulmonary circulation: the top loop of Figure 5.1 (right ventricle → pulmonary artery → lungs → pulmonary veins → left auricle).
  • v.Systemic circulation: the bottom loop of Figure 5.1 (left ventricle → aorta → body → vena cavae → right auricle).

Tips: draw the heart as you see it from the front, so its right side is on your left; color oxygenated blood red and deoxygenated blood blue; show the direction of flow with arrows; and draw the left ventricle’s wall thickest.
